Automatic Transmission Controls Schematics

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

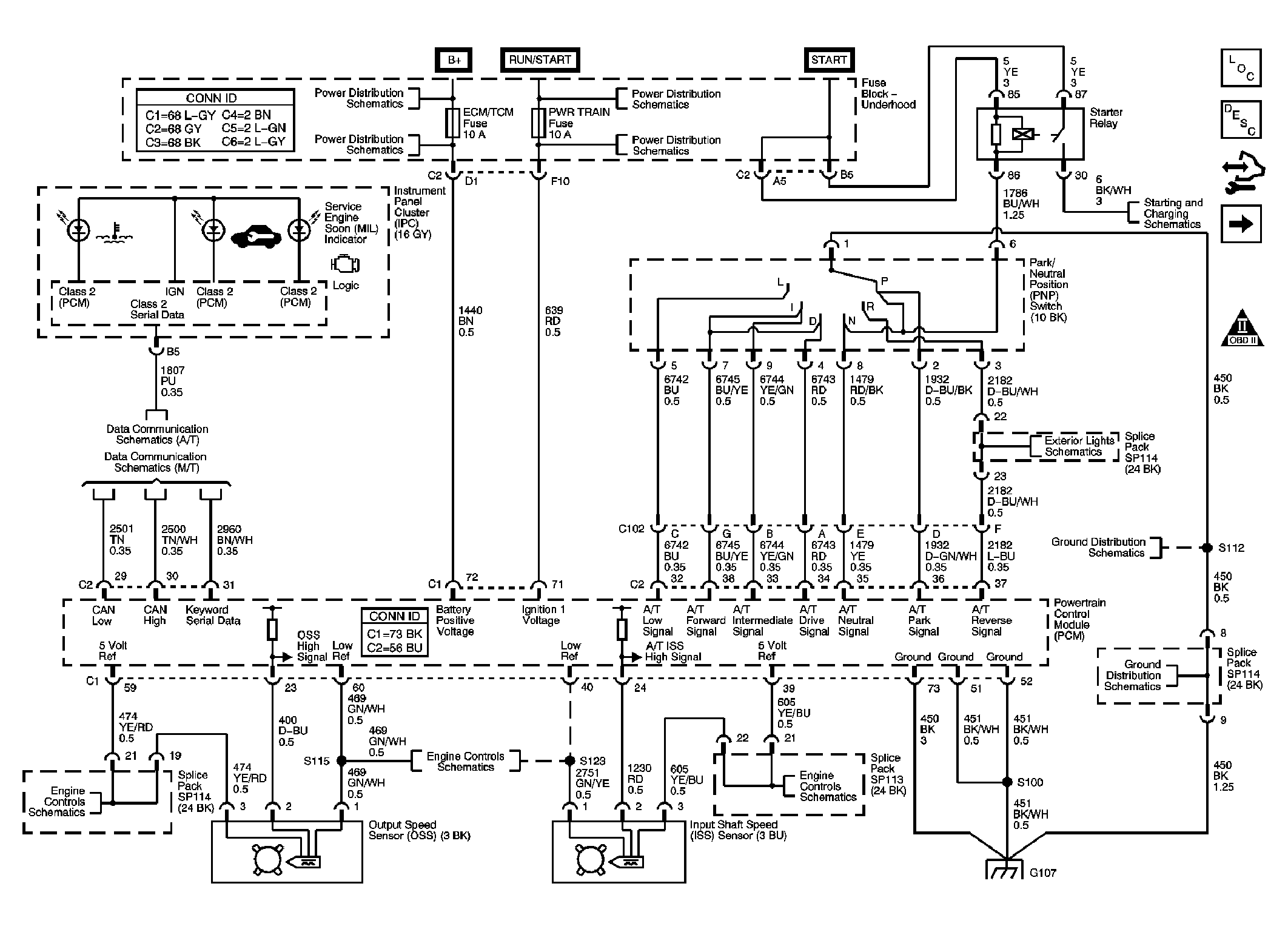

Fig 1: PNP Switch, OSS, ISS, Indicators, and PCM Communication
GM1796865Courtesy of GENERAL MOTORS CORP.

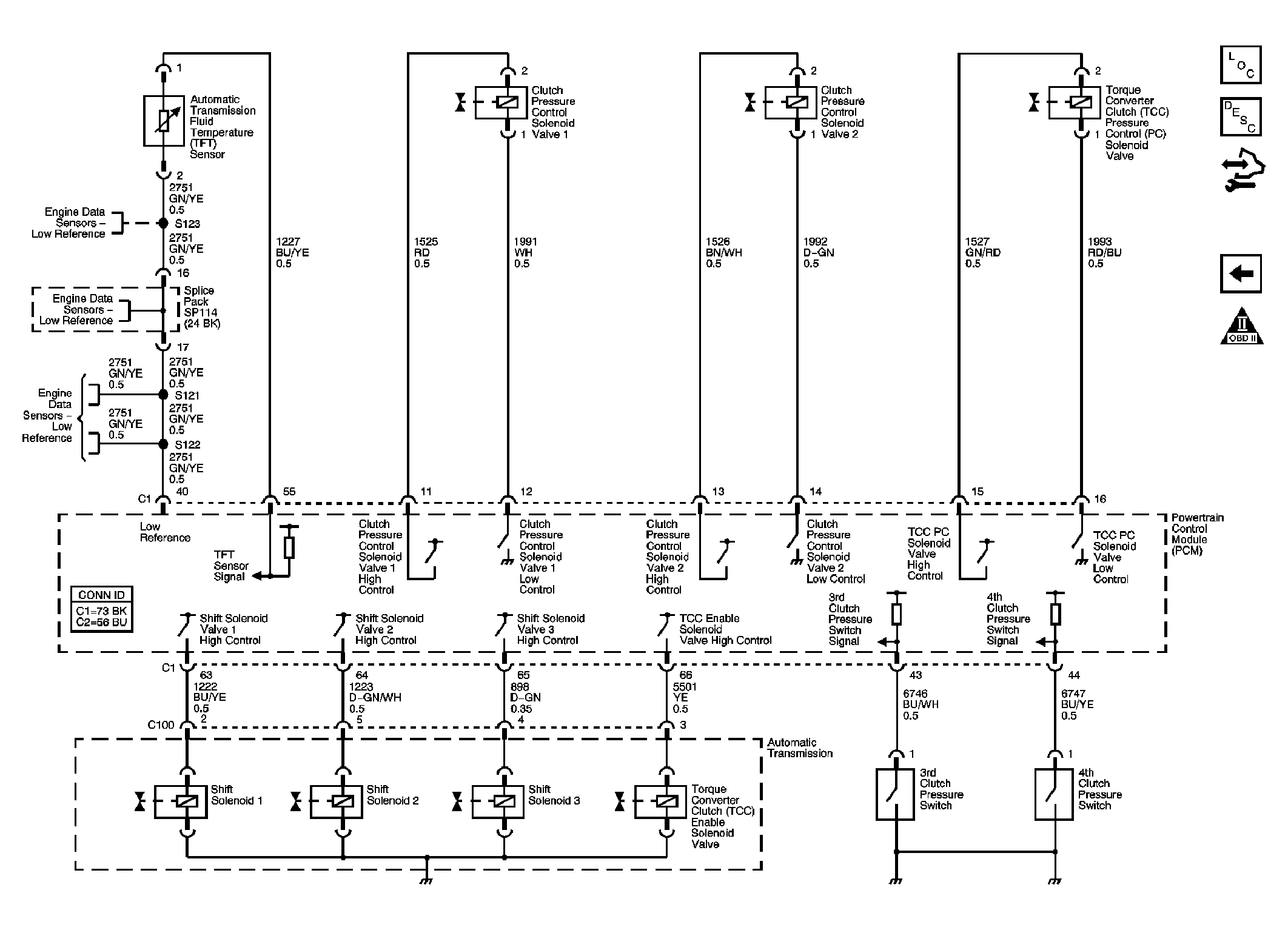

Fig 2: Solenoid and Switch Controls
GM1796915Courtesy of GENERAL MOTORS CORP.
