Installation Procedure

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

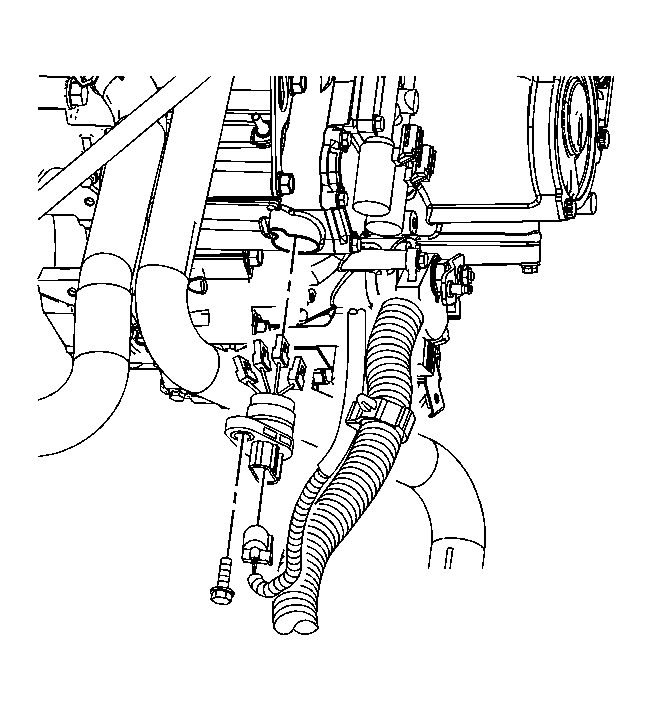

    Fig 1: Shift Control Solenoid Valve Electrical Connectors, Transmission Wiring Harness & Bolt
    GM1229877Courtesy of GENERAL MOTORS CORP.
  1. Apply automatic transmission fluid to a new transmission wiring connector O-ring seal.
  2. Install the new transmission wiring connector O-ring seal onto the transmission wiring harness assembly.
  3. Install the transmission wiring harness assembly into the transmission case assembly through the wiring harness bore.
    4. NOTE: Refer to Fastener Notice .
  4. Install the transmission wiring harness assembly bolt.

    Tighten:  Tighten the bolt to 12 N.m (106 lb in).

  5. Install the clutch pressure control solenoid cover. Refer to A/B Clutch Pressure Control Solenoid Assembly Cover Replacement .
