Installation Procedure

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the transmission mount to the frame.
    2. Fig 1: View Of Rear Transmission Mount-To-Frame Bolts
    GM1260852Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  2. Install the transmission mount-to-frame bolts.

    Tighten:  Tighten the bolt to 50 N.m (37 lb ft).

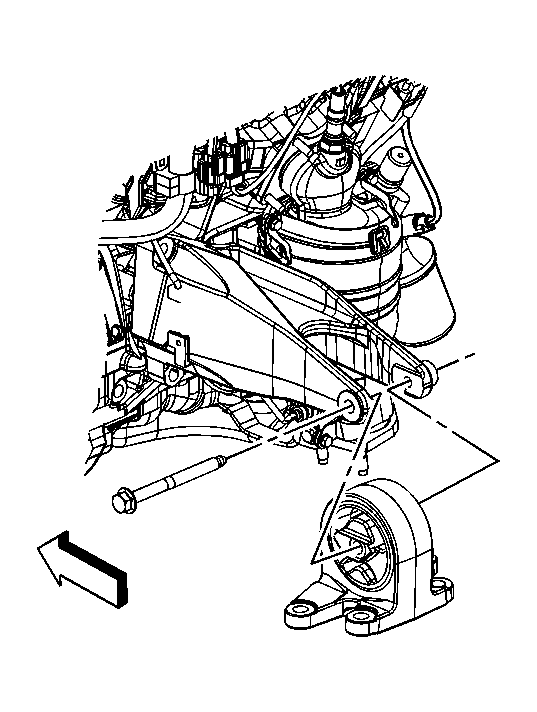

    3. Fig 2: Rear Transmission Mount-To-Bracket Through Bolt
    GM1239257Courtesy of GENERAL MOTORS CORP.
  3. Install the transmission mount-to-bracket through bolt, while aligning the transmission mount to the bracket.

    Tighten:  Tighten the bolt to 110 N.m (81 lb ft).

    4. Fig 3: View Of Stabilizer Shaft & Link
    GM927949Courtesy of GENERAL MOTORS CORP.
  4. If equipped with AWD, lower the stabilizer shaft and connect the stabilizer links.

    Tighten:  Tighten the stabilizer link nuts to 65 N.m (48 lb ft).

  5. Install both front tires and wheels. Refer to Tire and Wheel Removal and Installation .
  6. Lower the vehicle.
