Installation Procedure

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

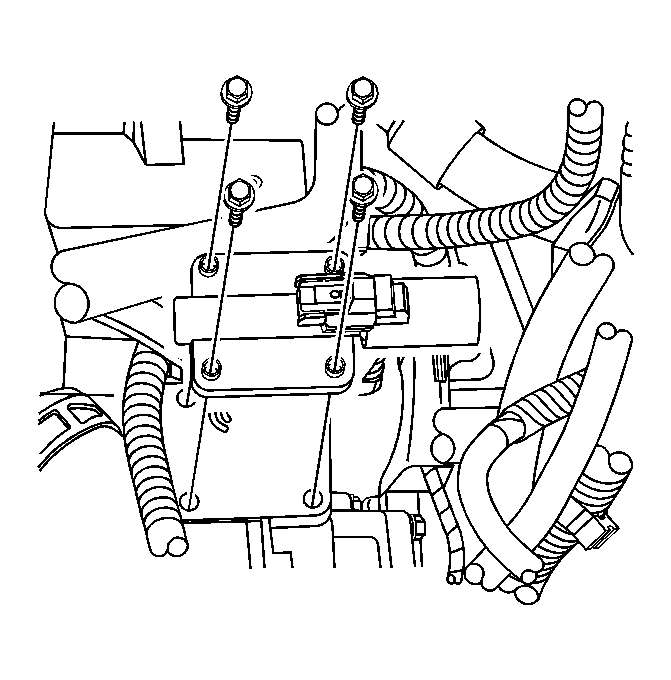

    Fig 1: TCC Solenoid & Bolts
    GM1229895Courtesy of GENERAL MOTORS CORP.
  1. Install the TCC solenoid assembly to the transmission case assembly.
    2. NOTE: Refer to Fastener Notice .
  2. Install the TCC solenoid bolts.

    Tighten:  Tighten the TCC solenoid bolts 12 N.m (106 lb in).

  3. Connect the wiring harness to the TCC solenoid.
  4. Install the battery tray. Refer to Battery Tray Replacement (2.2L (L61)) or Battery Tray Replacement (2.4L (LAT)) or Battery Tray Replacement (3.5L (L66)) .
