Removal Procedure

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply the parking brake.
  2. Place the transmission shift lever in the neutral position.
  3. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  4. Remove the tire and wheel. Refer to Tire and Wheel Removal and Installation .
  5. Remove the left splash shield. Refer to Engine Splash Shield Replacement .
    6. Fig 1: Park/Neutral Position Switch Harness Connector
    GM1227185Courtesy of GENERAL MOTORS CORP.
  6. Remove the range selective lever bolt and cover.
  7. Using the J 36346  , disconnect the control cable from the transaxle range switch lever.
  8. Disconnect the Park/neutral position switch harness connector.
    9. Fig 2: Transaxle Range Switch Lever Nut, Lock Nut, Washer & Lever
    GM1233354Courtesy of GENERAL MOTORS CORP.
  9. Remove the transmission control nut (4) and lever (1).
  10. Using a small screwdriver, bend the lock washer tabs down on the manual shaft nut.

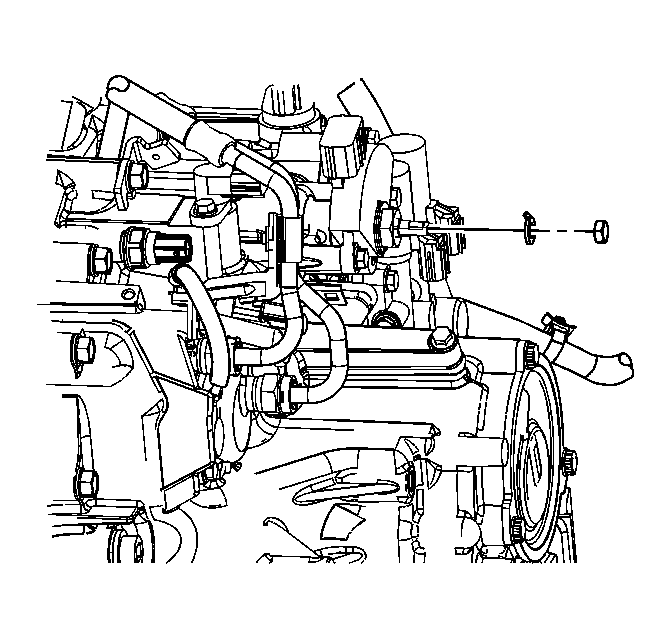

    11. Fig 3: Manual Shaft Nut & Lock Washer
    GM1233355Courtesy of GENERAL MOTORS CORP.
  11. Remove the manual shaft nut and lock washer.

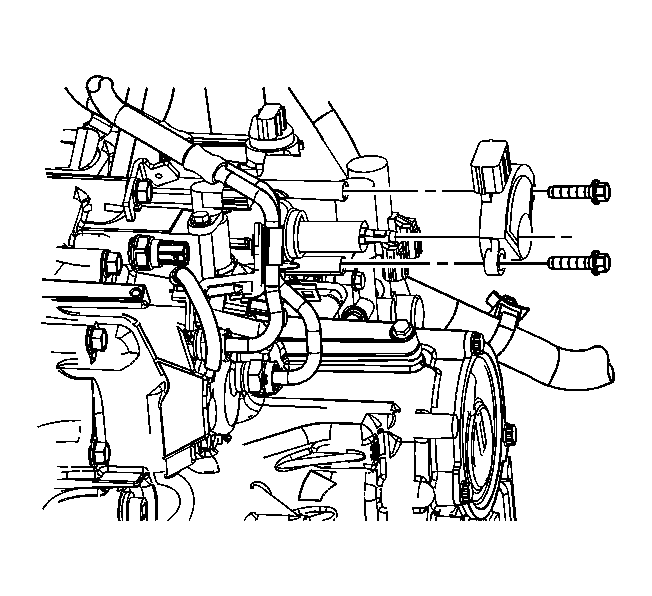

    12. Fig 4: Park/Neutral Position Switch & Bolts
    GM1233376Courtesy of GENERAL MOTORS CORP.
  12. Remove the park/neutral position switch bolts.
  13. Remove the park/neutral position switch from the transmission.
