Installation Procedure

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

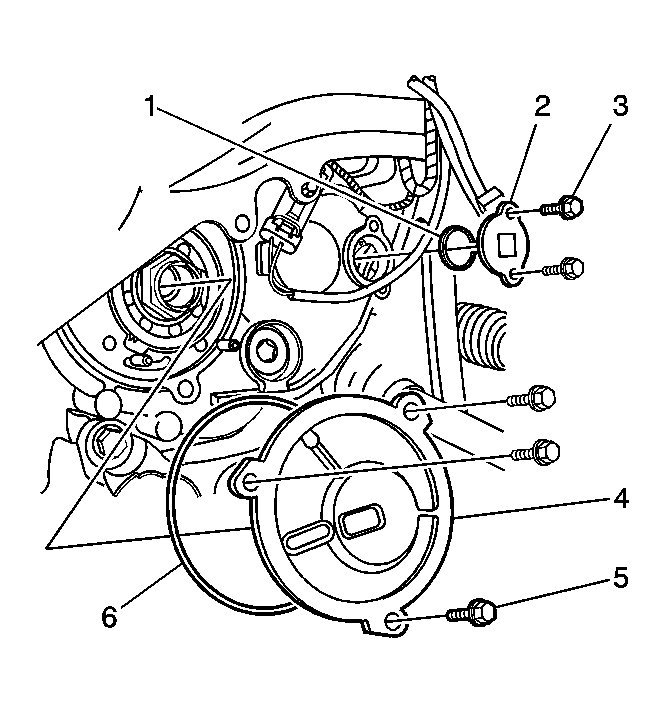

    Fig 1: End Cover Seal & Components
    GM1227150Courtesy of GENERAL MOTORS CORP.
  1. Install a new output shaft end cover seal (1).
    2. NOTE: Refer to Fastener Notice .
  2. Install the output shaft end cover (2) to the transmission.

    Tighten:  Tighten the output shaft end cover bolts to 12 N.m (106 lb in).

  3. Install the left front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement .
  4. Install the left front wheel. Refer to Tire and Wheel Removal and Installation .
