Installation Procedure

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

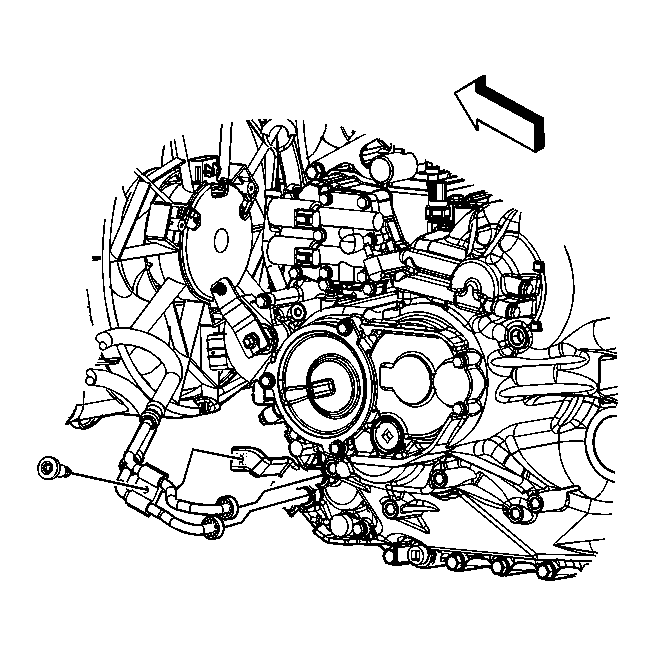

    Fig 1: Connecting Oil Cooler Lines To Transmission
    GM1228499Courtesy of GENERAL MOTORS CORP.
  1. Insert a new oil cooler pipe seal to the cooler pipe fitting.
    2. NOTE: Refer to Fastener Notice .
  2. Install the cooler pipe fitting to the transmission.

    Tighten:  Tighten the cooler pipe fitting to 20 N.m (14 lb in).

  3. Connect the oil cooler lines to the transmission. Refer to Oil Cooler Line Replacement .
