Installation Procedure

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

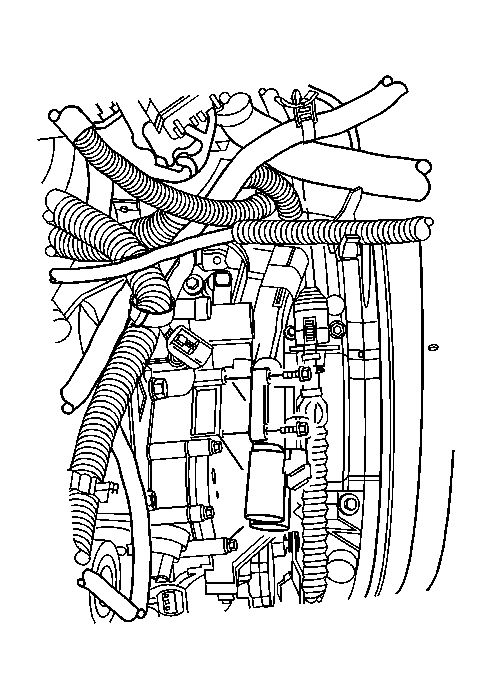

    Fig 1: Solenoid Assembly Electrical Connectors, Gasket & Bolts
    GM1227184Courtesy of GENERAL MOTORS CORP.
  1. Install a new solenoid assembly gasket.
  2. Install the solenoid assembly.
    3. NOTE: Refer to Fastener Notice .
  3. Install the solenoid assembly bolts.

    Tighten:  Tighten the solenoid assembly bolts to 12 N.m (106 lb in).

  4. Connect the solenoid assembly electrical connectors.
  5. Install the feed pipes to the original locations and orientation.
  6. Install the wiring harness fasteners to the transmission.
  7. Connect the transmission shift cable to the select lever and cable bracket.
  8. Install the battery tray. Refer to Battery Tray Replacement (2.2L (L61)) or Battery Tray Replacement (2.4L (LAT)) or Battery Tray Replacement (3.5L (L66)) .
