Transmission Case Removal

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Torque Converter Housing Bolts, Transmission Lift Bracket & Wiring Harness Bracket
    GM1203361Courtesy of GENERAL MOTORS CORP.
  1. Position the transaxle with the rear of the transmission case facing upward.
  2. Remove the 24 torque converter housing bolts (89, 90, 91, 92, 106, and 107).
  3. Remove the transmission lift bracket (88) and the wiring harness bracket (108).
    4. Fig 2: Expanding The Output Shaft Retaining Ring Using A Snap Ring Pliers
    GM1203362Courtesy of GENERAL MOTORS CORP.
    NOTE: Do not nick, scratch or damage the sealing surface. The sealing surface is a machined surface. Damage to the machined surface can cause leakage.
  4. Using the snap ring pliers, expand the output shaft retaining ring (513).

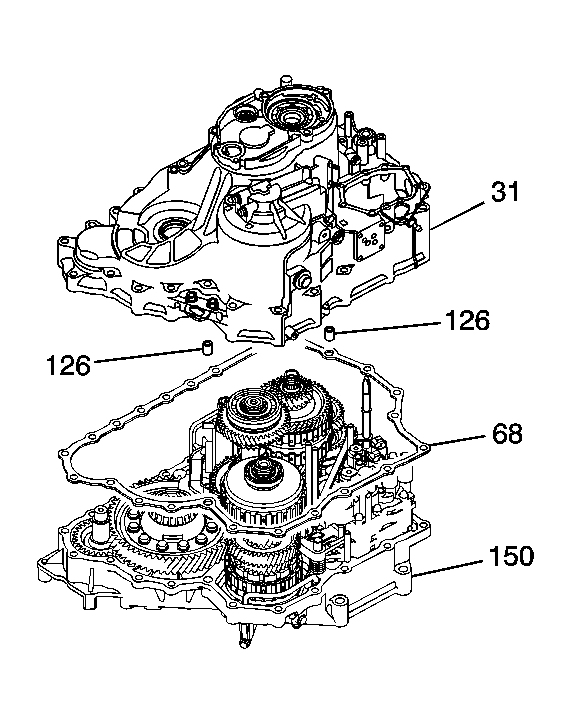

    5. Fig 3: Transmission Case, Torque Converter Housing Gasket & Pins
    GM1203363Courtesy of GENERAL MOTORS CORP.
  5. Lift the transmission case (31) off of the torque converter housing (150).
  6. Release the snap ring pliers and continue to remove the transmission case (31).
  7. Remove the torque converter housing gasket (68).
  8. Remove the 2 transmission case locating pins (126).
