Servo Valve Body Assembly Installation

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

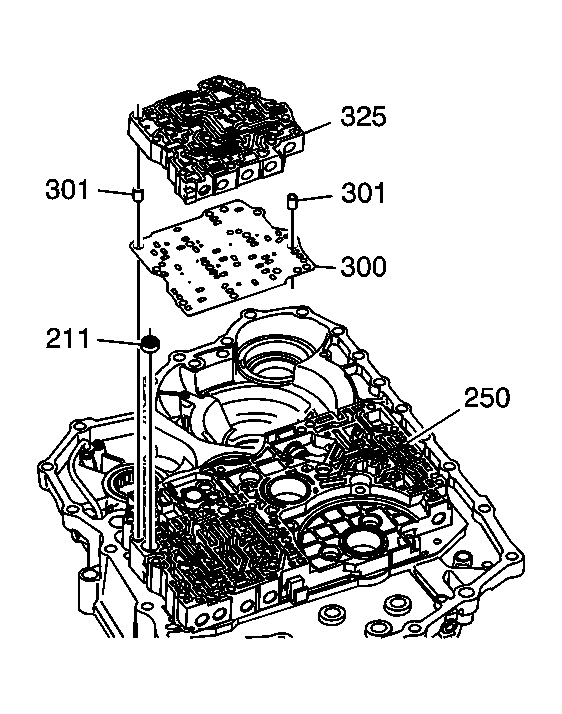

    Fig 1: Servo Valve Body Spacer Plate, Locating Pins & Transmission Fluid Filter
    GM1206228Courtesy of GENERAL MOTORS CORP.
  1. Install the transmission fluid filter (211) into the control valve body assembly (250).
  2. Install both 8 x 14 mm spacer plate locating pins (301) into the control valve body assembly (250).
  3. Install the servo valve body spacer plate (300) on top of the control valve body assembly (250).
  4. Install the servo valve body assembly (325) on top of the control valve body assembly (250).

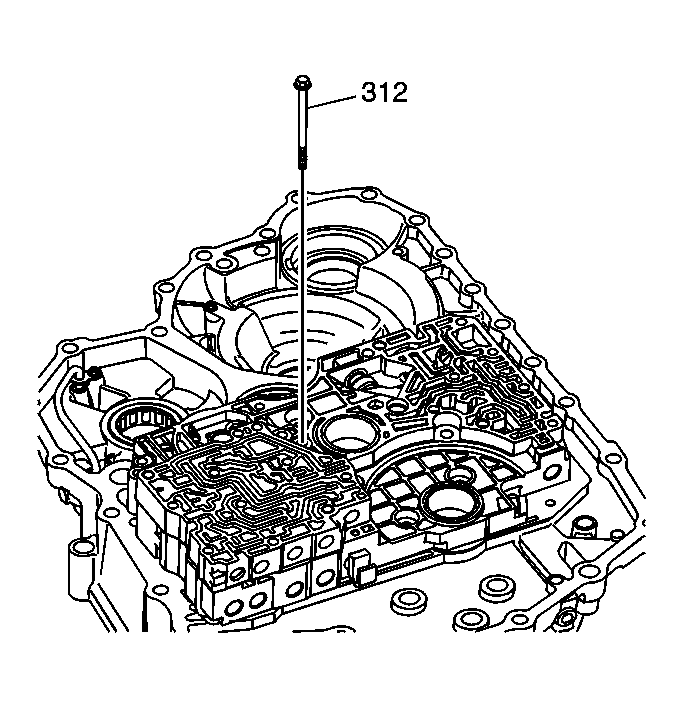

    5. Fig 2: Installing Servo Valve Body Bolt
    GM1206230Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  5. Install the servo valve body M6 x 1.0 x 60 mm bolt (312).

    Tighten:  Tighten the bolt to 12 N.m (106 lb in)

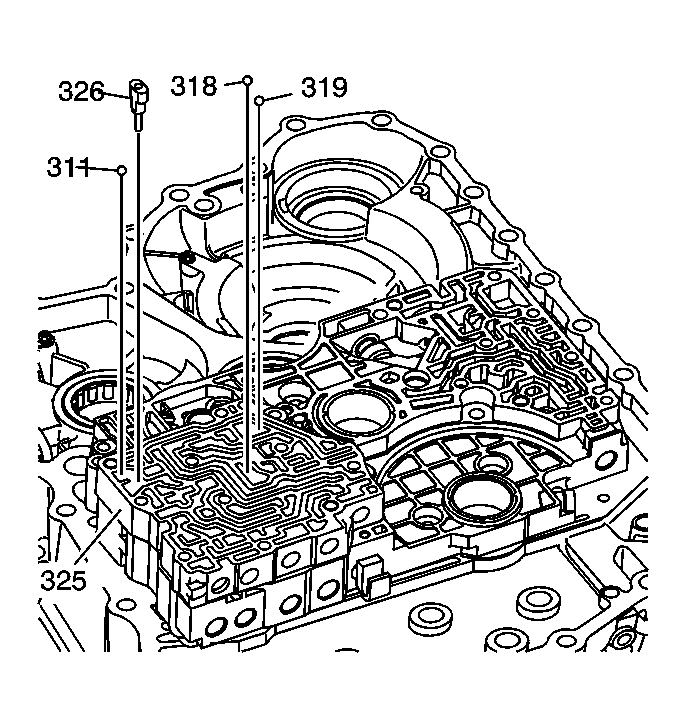

    6. Fig 3: 1st/2nd Clutch 7/32 In Check Valve & 1st Accumulator Choke
    GM1347181Courtesy of GENERAL MOTORS CORP.
  6. Install the 1st clutch accumulator 7/32 in check valve (311) into the servo valve body assembly (325).
  7. Install the 1st clutch 7/32 in check valve (318).
  8. Install the 2nd clutch 7/32 in check valve (319).
  9. Install the 1st accumulator choke (326).
