Regulator Valve Body Assembly Installation
WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

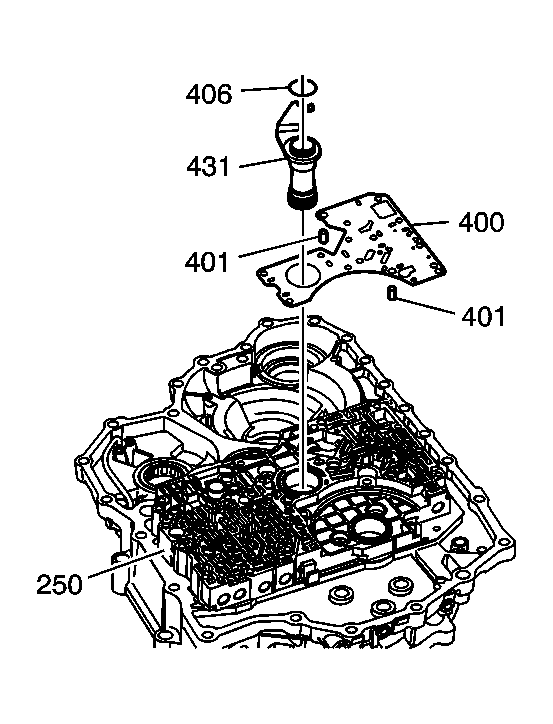

- Install the spacer plate locating pins (401) into the control valve body assembly (250).
- Install the regulator body spacer plate (400).
- Lubricate and install a new stator shaft O-ring seal (406) on the stator shaft and torque arm assembly (431).
- Install the stator shaft and torque arm assembly (431) through the hole located in the control valve body assembly (250). Ensure that the assembly is fully seated and moves freely.

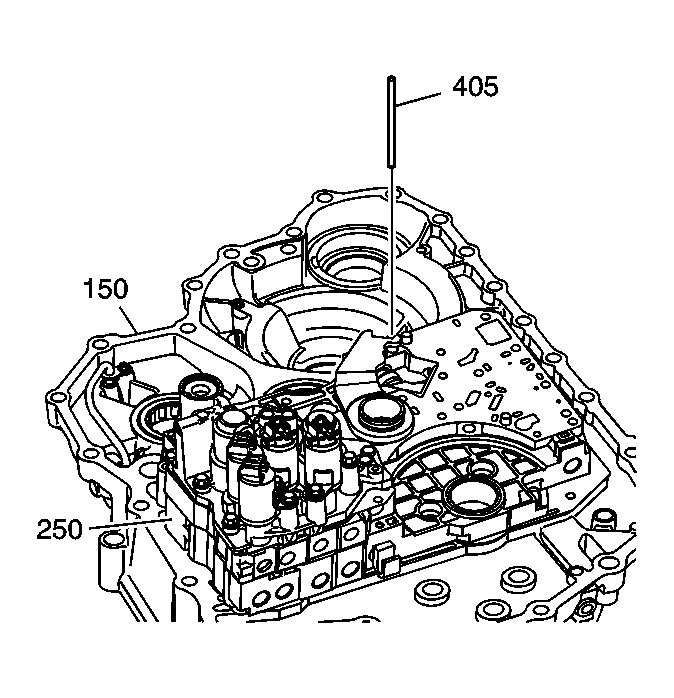

- Insert the 7 x 71 mm stator shaft stop pin (405) into the hole located in the control valve body assembly (250).
- Ensure that the pin bottoms out in the hole located in the torque converter housing assembly (150).
- Position the torque arm assembly to allow the pin to be positioned between the stops.
- Install the regulator valve body assembly (430) onto the control valve body assembly.
- Install the following regulator valve body bolts:
- 2 M6 x 1.0 x 35 mm bolts (411)
- A M6 x 1.0 x 55 mm bolt (412)
- 4 M6 x 1.0 x 70 mm bolts (413)
- A M6 x 1.0 x 80 mm bolt (414)
- Tighten the bolts in the sequence shown.
Tighten: Tighten all bolts to 12 N.m (106 lb in).
NOTE:
Refer to Fastener Notice
in Cautions and Notices.
