Removal Procedure

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

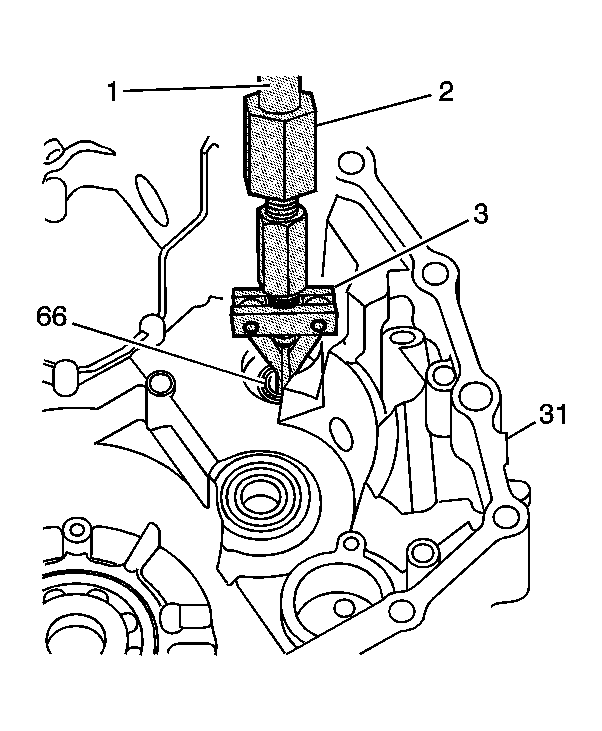

    Fig 1: Remove Manual Shift Shaft Bearing Using DT 46424, SA9133T & SA9133T-1
    GM1203914Courtesy of GENERAL MOTORS CORP.
  1. Using the DT 46424  (3), SA9133T  (1) and SA9133T-1  (2), remove the manual shift shaft bearing (66) from the transmission case (31). See Special Tools .
  2. Inspect the bearing for wear or damage. Replace as needed.
