Front Differential Assembly and Transfer Case Input Gear Removal

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

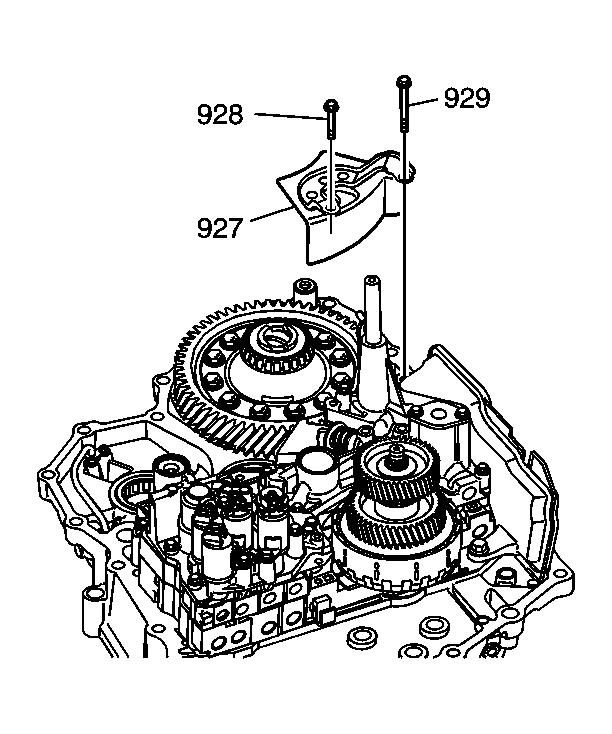

    Fig 1: Fluid Baffle & Bolts
    GM1343178Courtesy of GENERAL MOTORS CORP.
  1. Remove the fluid baffle bolts (928, 929) from the torque converter housing.
  2. Remove the fluid baffle (927).

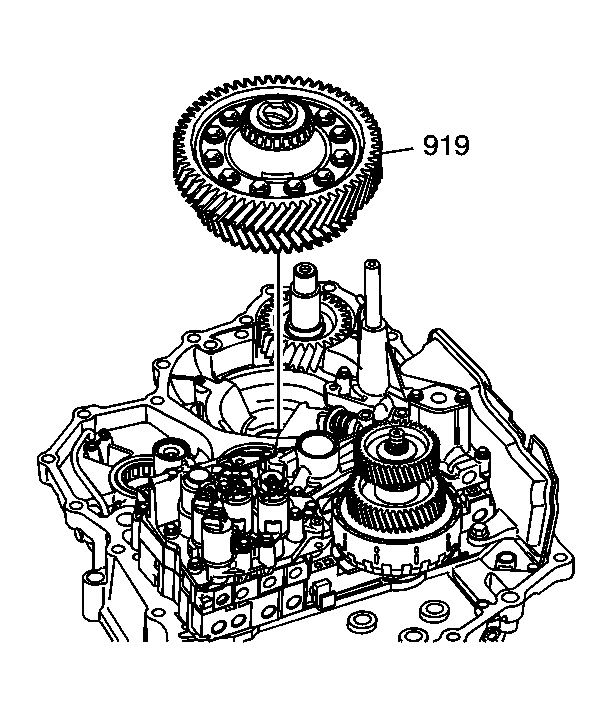

    3. Fig 2: Complete Front Differential Assembly
    GM1343179Courtesy of GENERAL MOTORS CORP.
  3. Remove the complete front differential assembly (919).

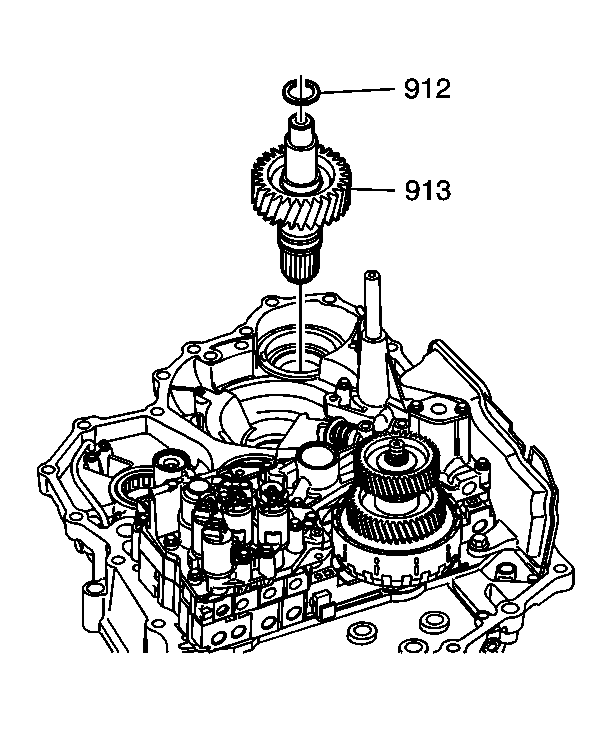

    4. Fig 3: Transfer Case Selective Shim, Input Gear & Shaft Assembly
    GM1343180Courtesy of GENERAL MOTORS CORP.
  4. Remove the transfer case selective shim (912).
  5. Remove the transfer case input gear and shaft assembly (913).
