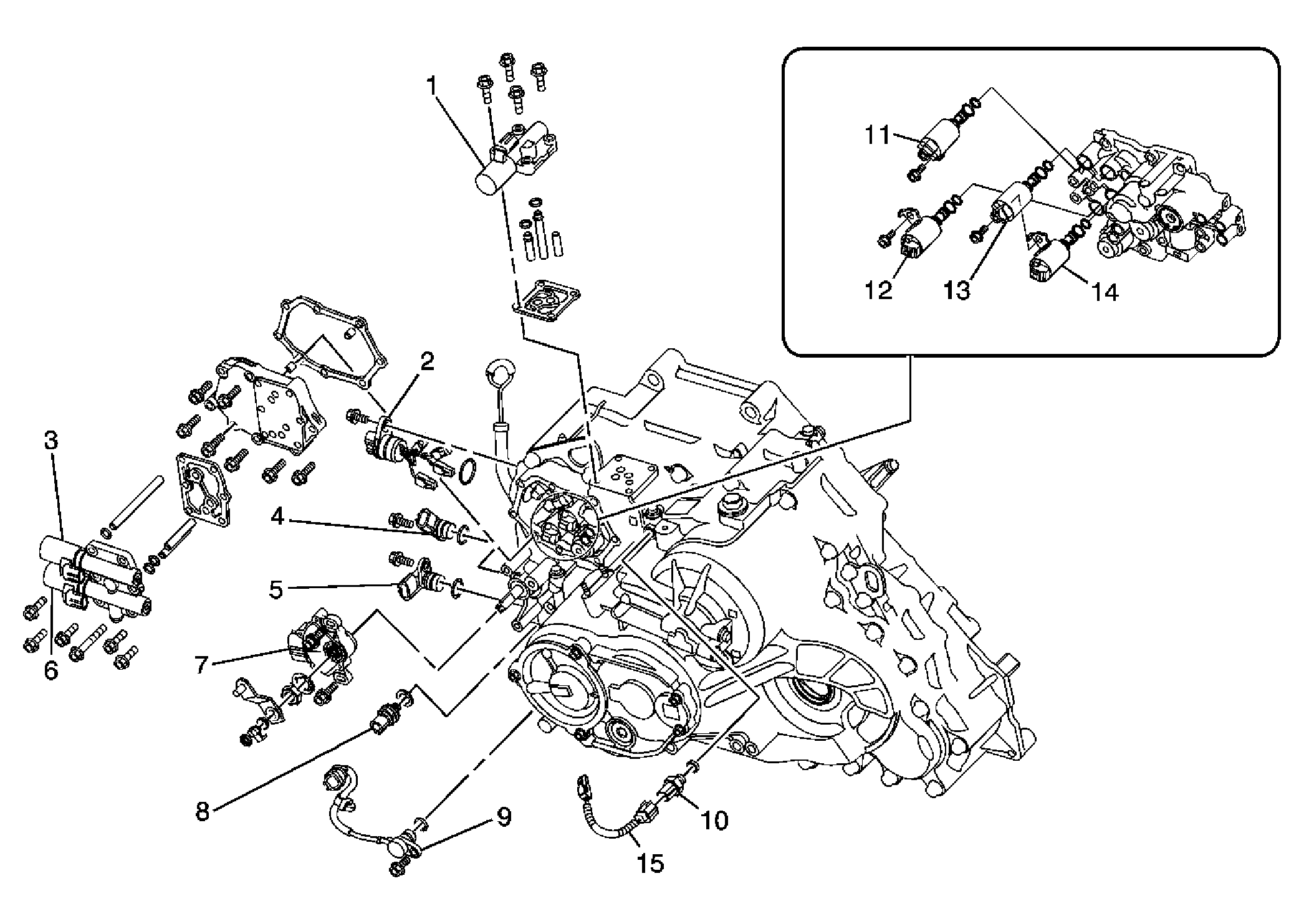

Automatic Transmission Electronic Component Views
WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 1 | Solenoid - TCC Lock-Up Pressure Control |
| 2 | Harness Assembly - Automatic Transmission Wiring |
| 3 | Solenoid - Automatic Transmission Clutch Pressure Control "A" (1) |
| 4 | Sensor - Input Speed |
| 5 | Sensor - Output Speed |
| 6 | Solenoid - Automatic Transmission Clutch Pressure Control "B" (2) |
| 7 | Switch - Park/Neutral Position |
| 8 | Switch - 3rd Clutch Fluid Pressure |
| 9 | Sensor - Automatic Transmission Fluid Temperature, w/Harness |
| 10 | Switch - 4th Clutch Fluid Pressure |
| 11 | Solenoid - Shift Control "A" (1) |
| 12 | Solenoid - Shift Control "B" (2) |
| 13 | Solenoid - Shift Control "C" (3) |
| 14 | Solenoid - Torque Converter Clutch |
| 15 | Harness - 4th Clutch Fluid Pressure Switch |
