Transmission Fluid Checking

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

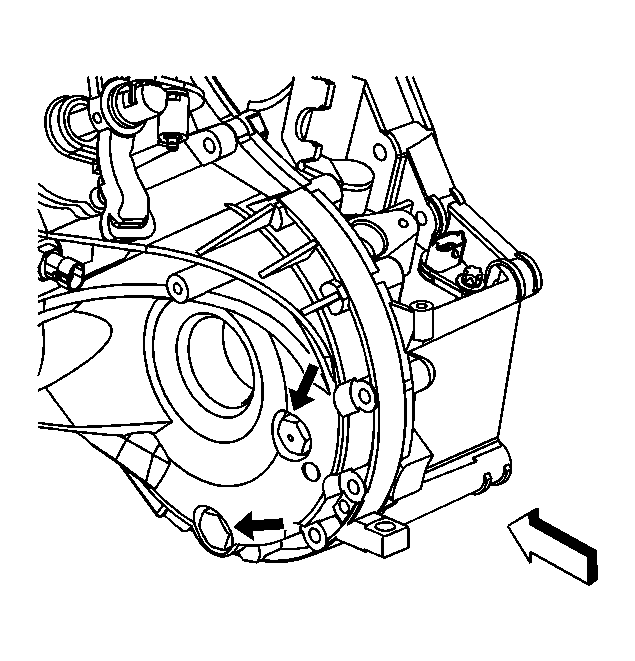

    Fig 1: Locating Fluid Level Check Plugs
    GM857189Courtesy of GENERAL MOTORS CORP.
    IMPORTANT:
    • It is not necessary to check the fluid level unless the fluid has been changed or a leak is suspected.
    • Inspect the fluid level only when the engine is off. Ensure the vehicle is level. The transaxle must be cold.
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Remove the fluid level check plug.
  3. Verify that the fluid is level with the opening.
  4. If the transaxle is not properly filled, carefully add manual transmission and transfer case fluid G/M P/N 88861800 (Canadian P/N 88861801) until it begins to flow out of the fill/check plug.
    5. NOTE: Refer to Fastener Notice .
  5. Install the fluid level check plug.

    Tighten:  Tighten the fluid level check plug to 38 N.m (28 lb ft).

  6. Lower the vehicle.
