Splice Pack SP401 (G401)
WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
Splice Pack SP401 (G401) Connector Parts Information
Connector Part Information
|

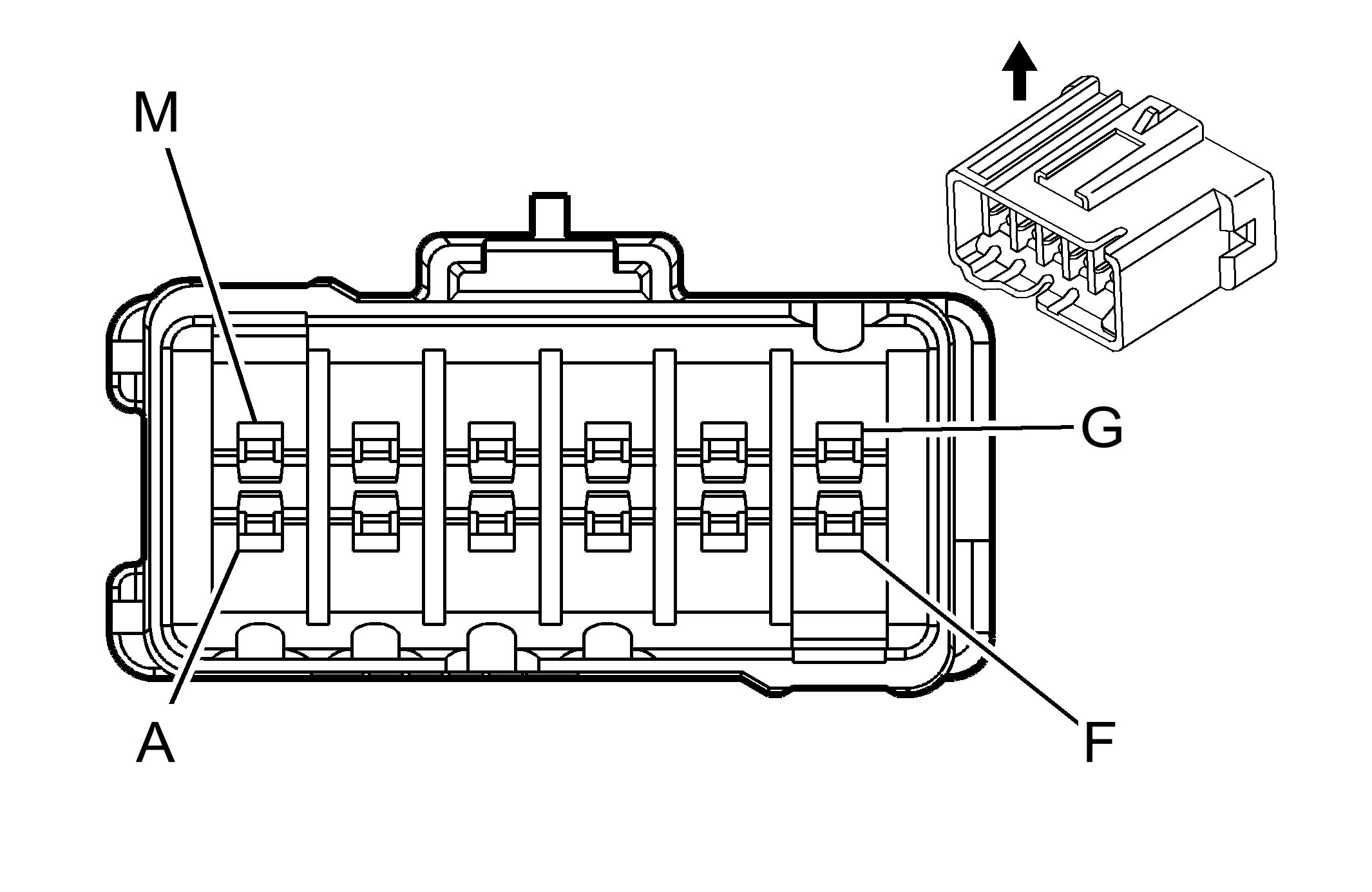

Splice Pack SP401 (G401) Connector Terminal Identification
| Pin | Wire Color | Circuit No. | Function |
|---|---|---|---|
| A | - | - | Not Used |
| B | BK | 750 | Ground |
| C | - | - | Not Used |
| D | BK | 750 | Ground |
| E | - | - | Not Used |
| F | BK | 750 | Ground (HP7) |
| G | - | - | Not Used |
| H | BK | 750 | Ground |
| J | BK | 750 | Ground |
| K | - | - | Not Used |
| L | BK | 750 | Ground (HP7) |
| M | - | - | Not Used |
