Fuse Block - Underhood C5

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

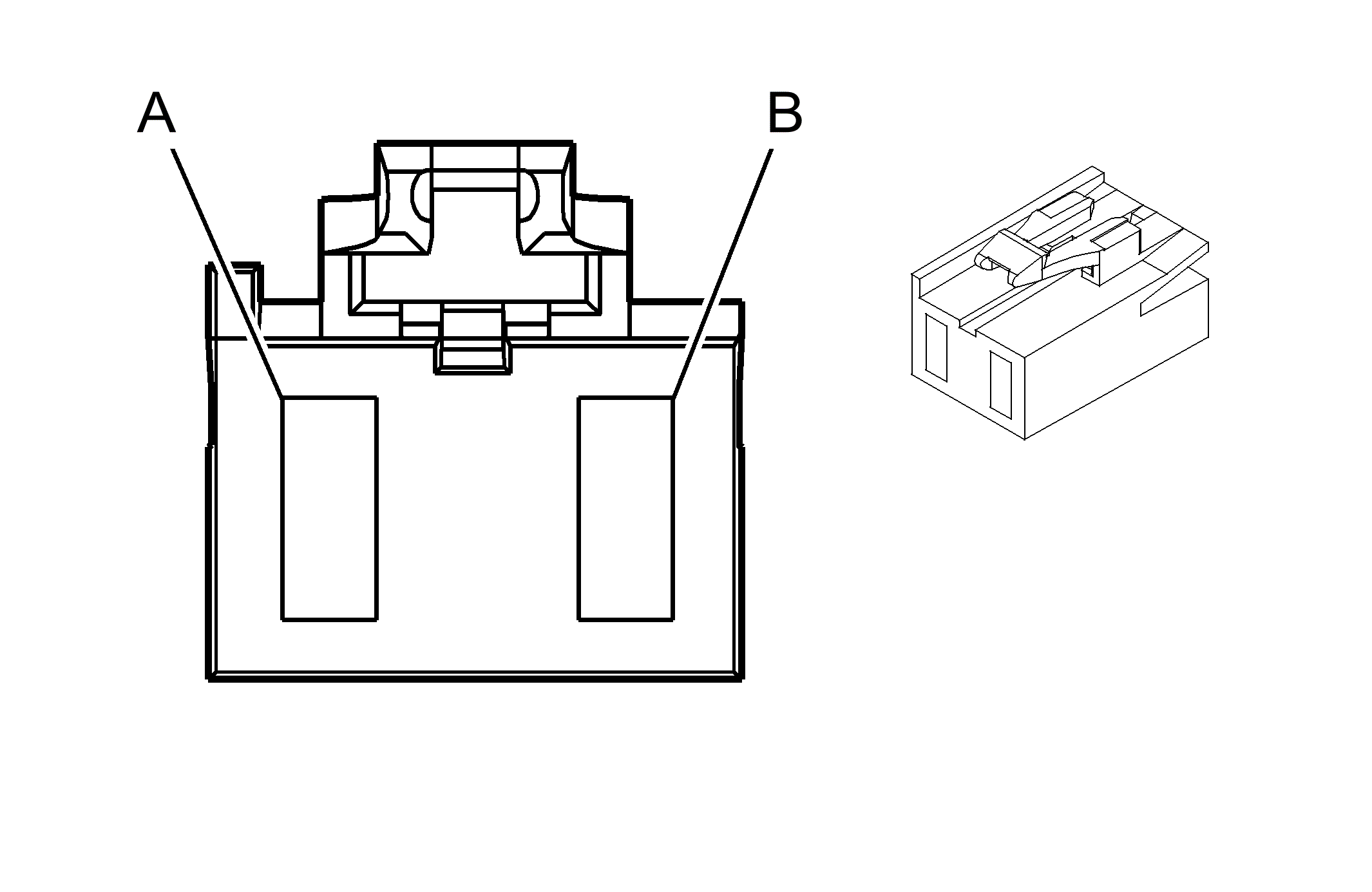

Fig 1: Fuse Block - Underhood C5 Connector End Views
GM1282880Courtesy of GENERAL MOTORS CORP.
Fuse Block - Underhood C5 Connector Parts Information

Connector Part Information
  • OEM: 15319799
  • Service: 15306316
  • Description: 2-Way F Maxi-Fuse (L-GN)
Fuse Block - Underhood C5 Connector Terminal Identification

Pin Wire Color Circuit No. Function
A OG 40 Battery Positive Voltage
OG 40 Battery Positive Voltage
B RD/WH 1140 Battery Positive Voltage
