Ground Distribution Schematics

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

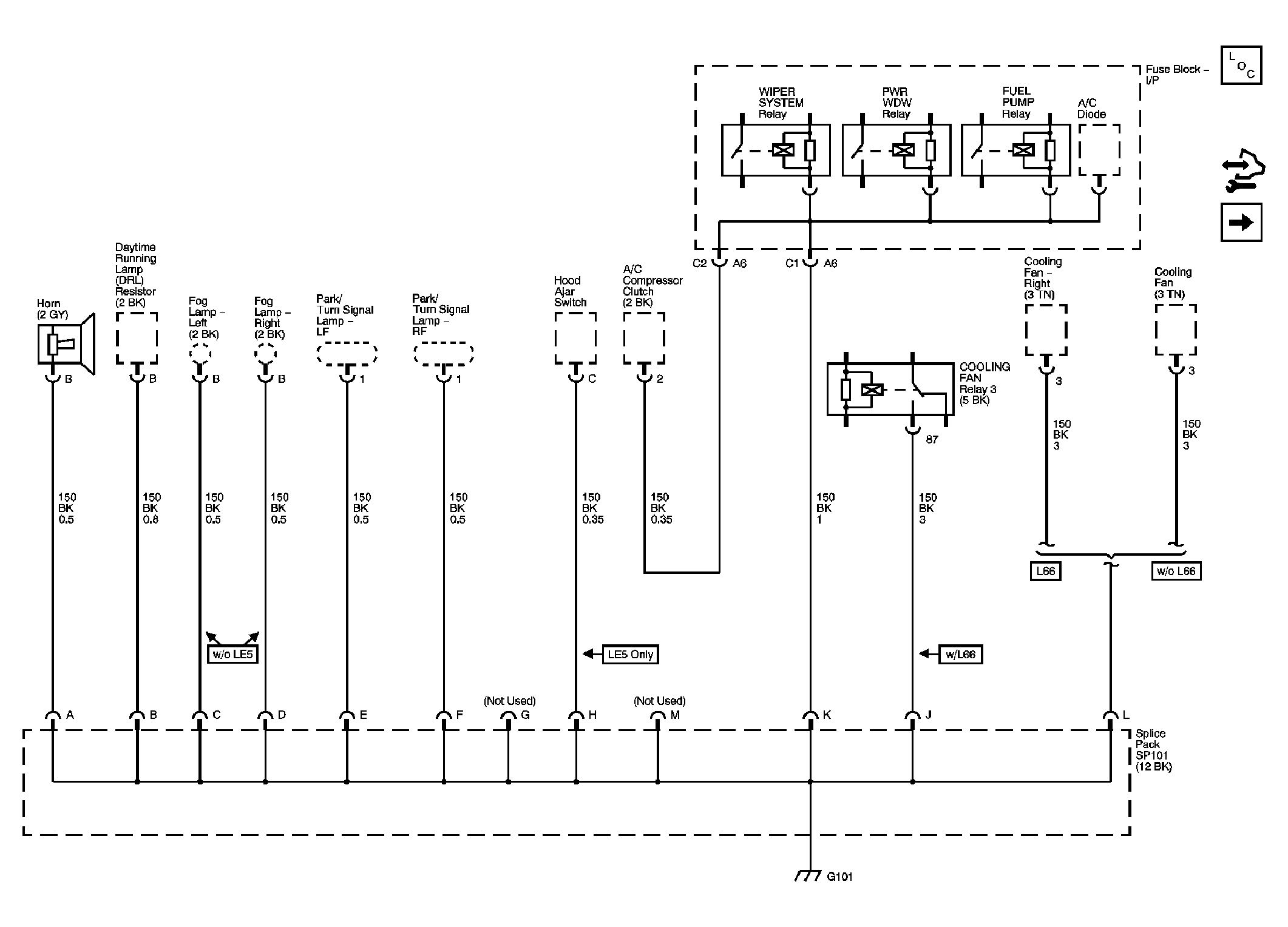

Fig 1: G101

Courtesy of GENERAL MOTORS CORP.

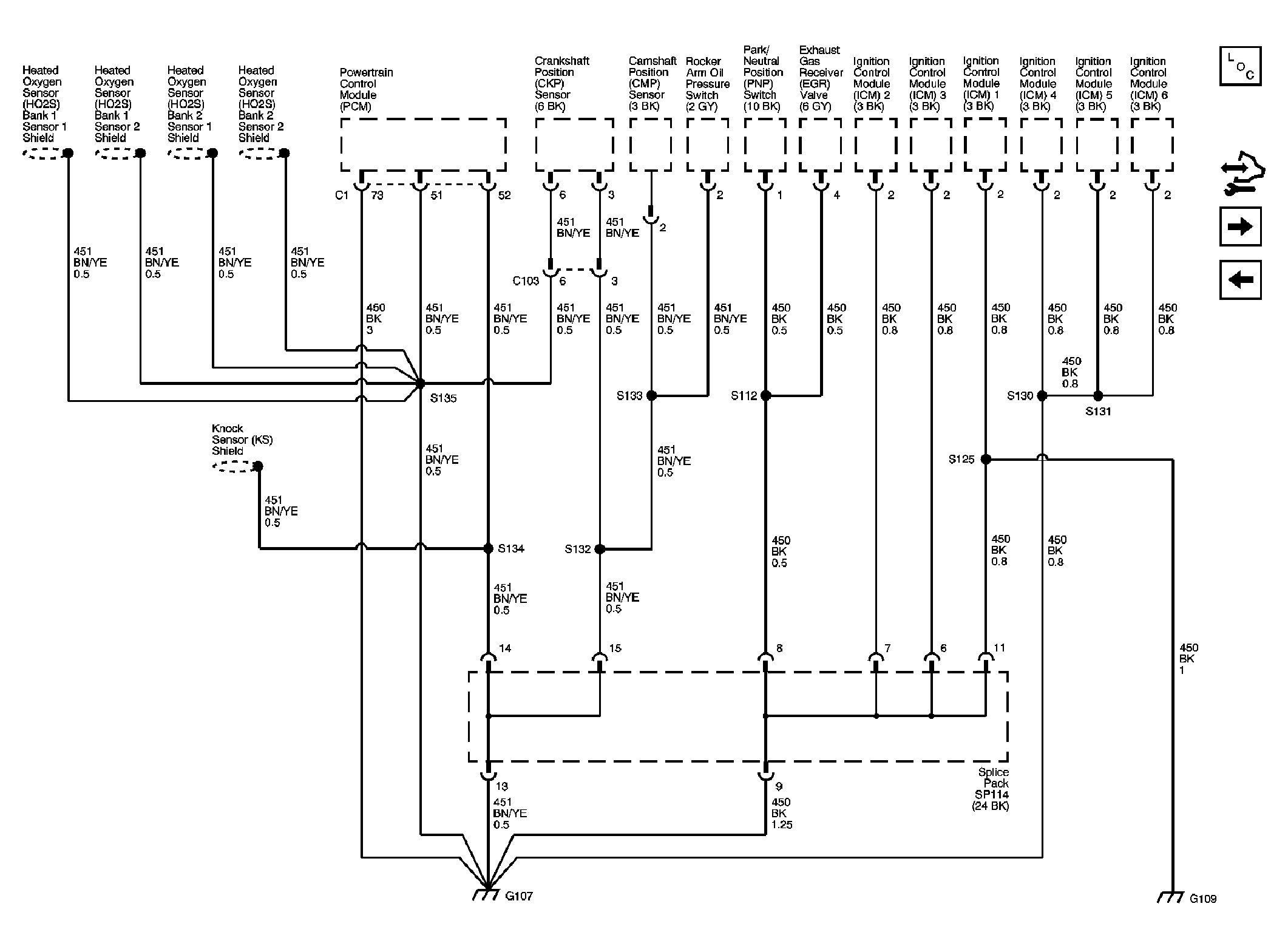

Fig 2: G107 and G109

Courtesy of GENERAL MOTORS CORP.

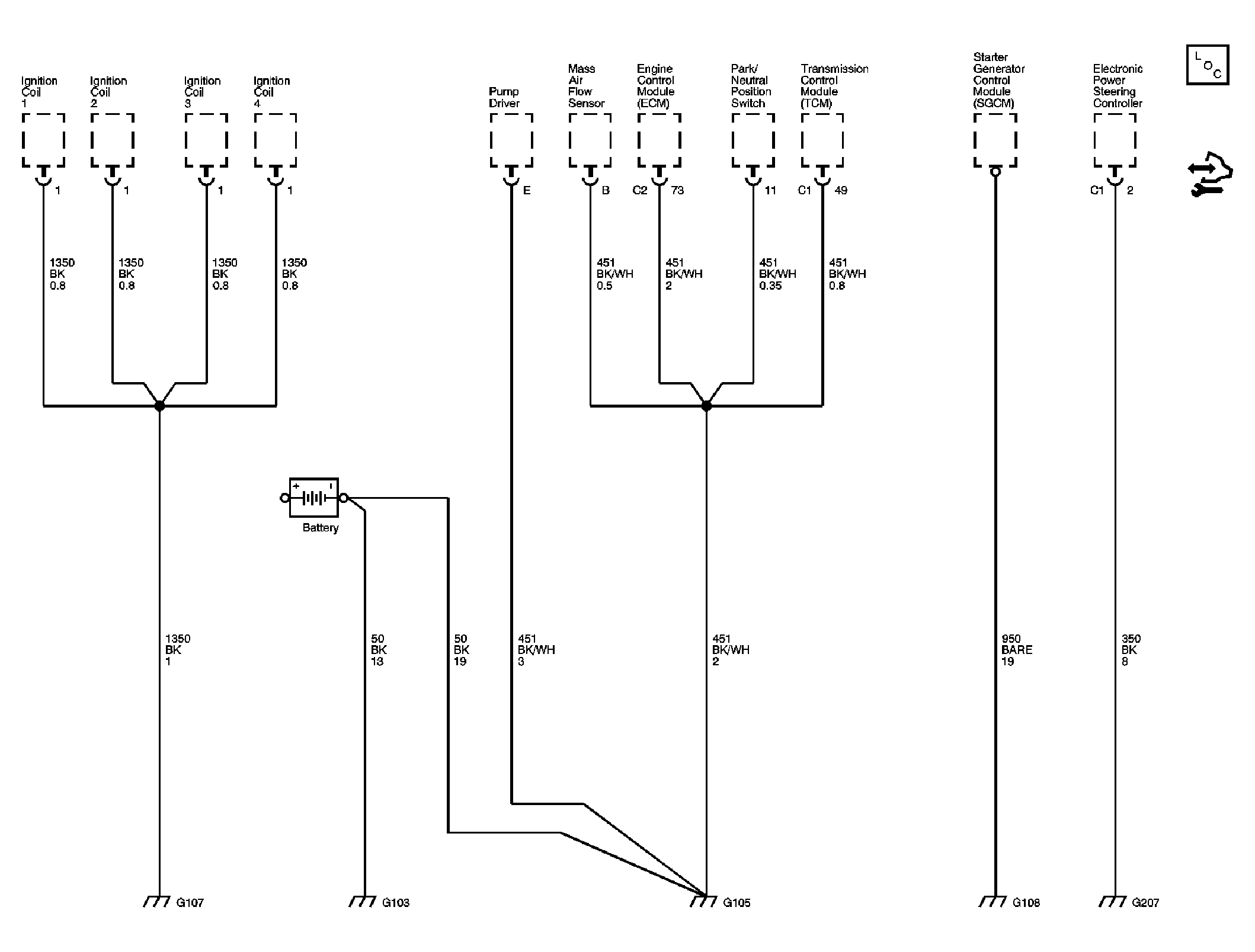

Fig 3: G103, G105, G107, G108, and G207 (LAT)

Courtesy of GENERAL MOTORS CORP.

Fig 4: G103, G105, and G107

Courtesy of GENERAL MOTORS CORP.

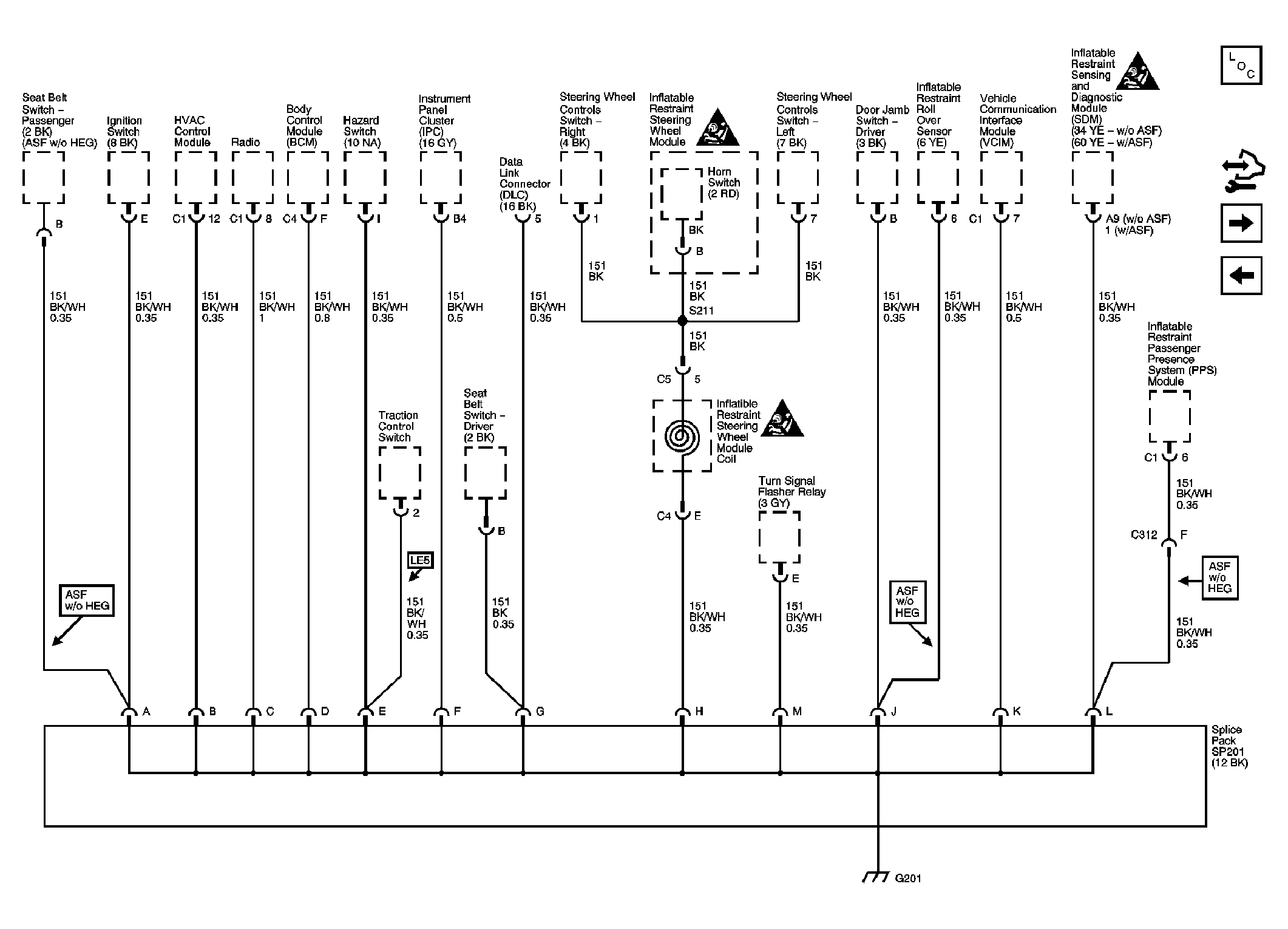

Fig 5: G201

Courtesy of GENERAL MOTORS CORP.

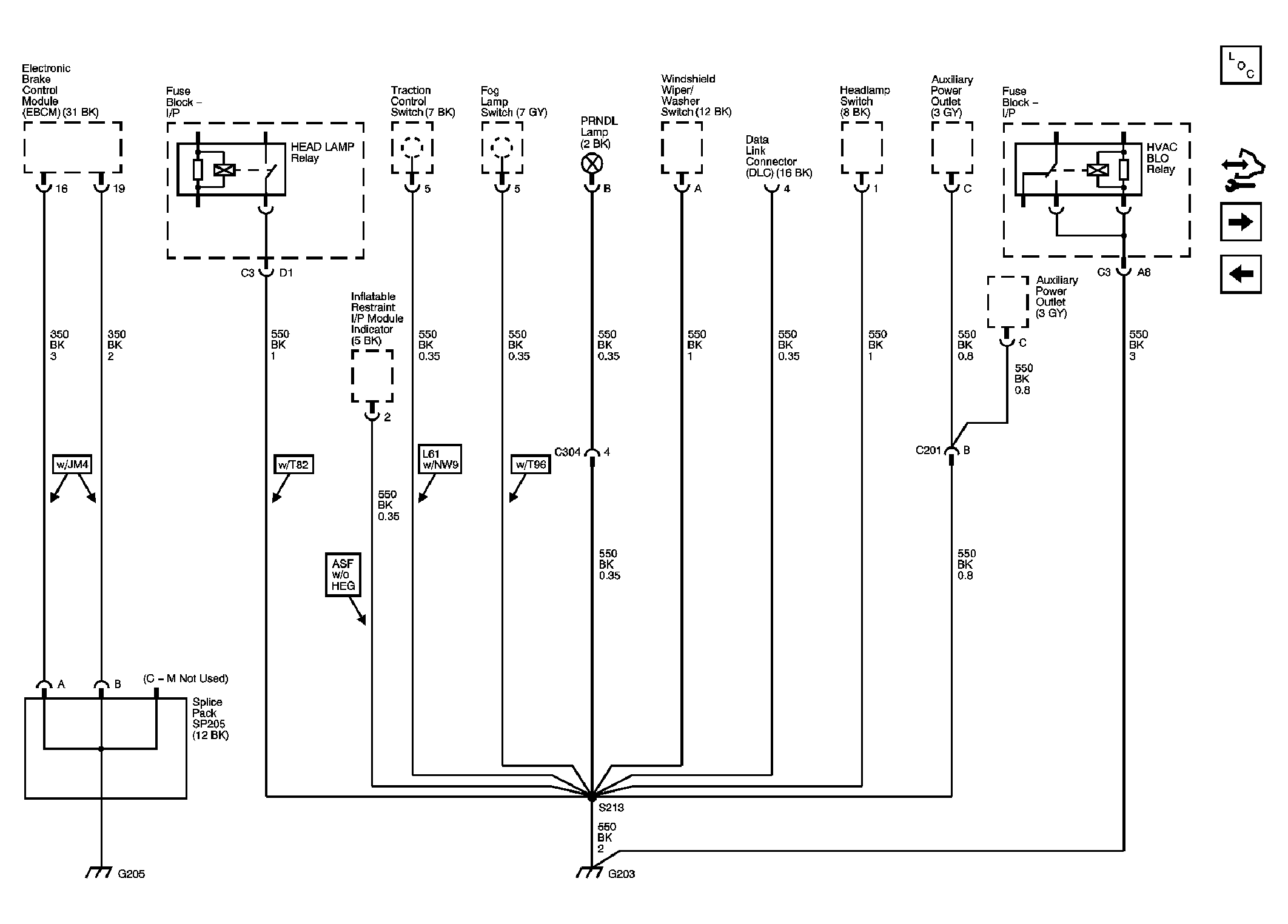

Fig 6: G203 and G205

Courtesy of GENERAL MOTORS CORP.

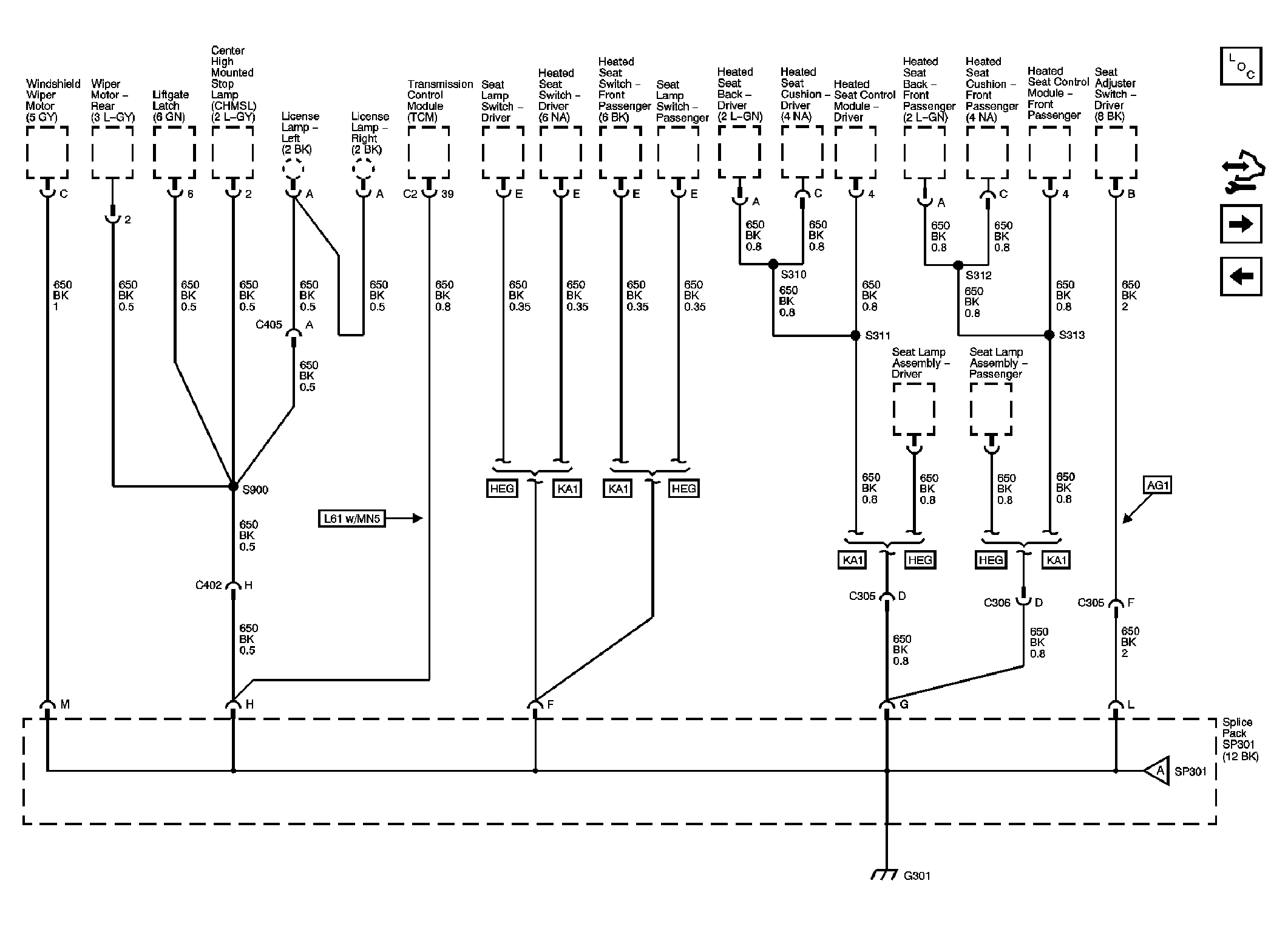

Fig 7: G301 1 of 2

Courtesy of GENERAL MOTORS CORP.

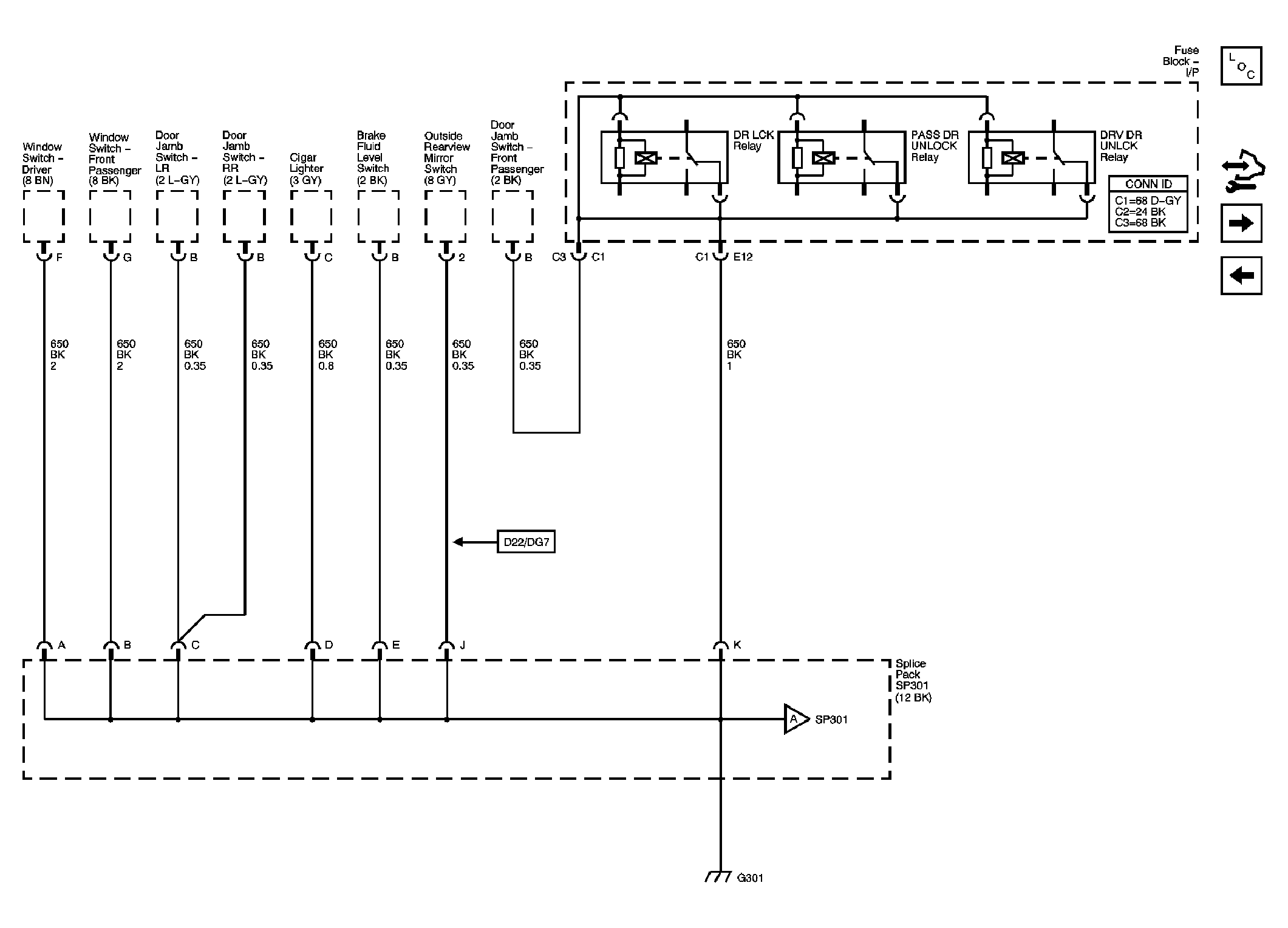

Fig 8: G301 2 of 2

Courtesy of GENERAL MOTORS CORP.

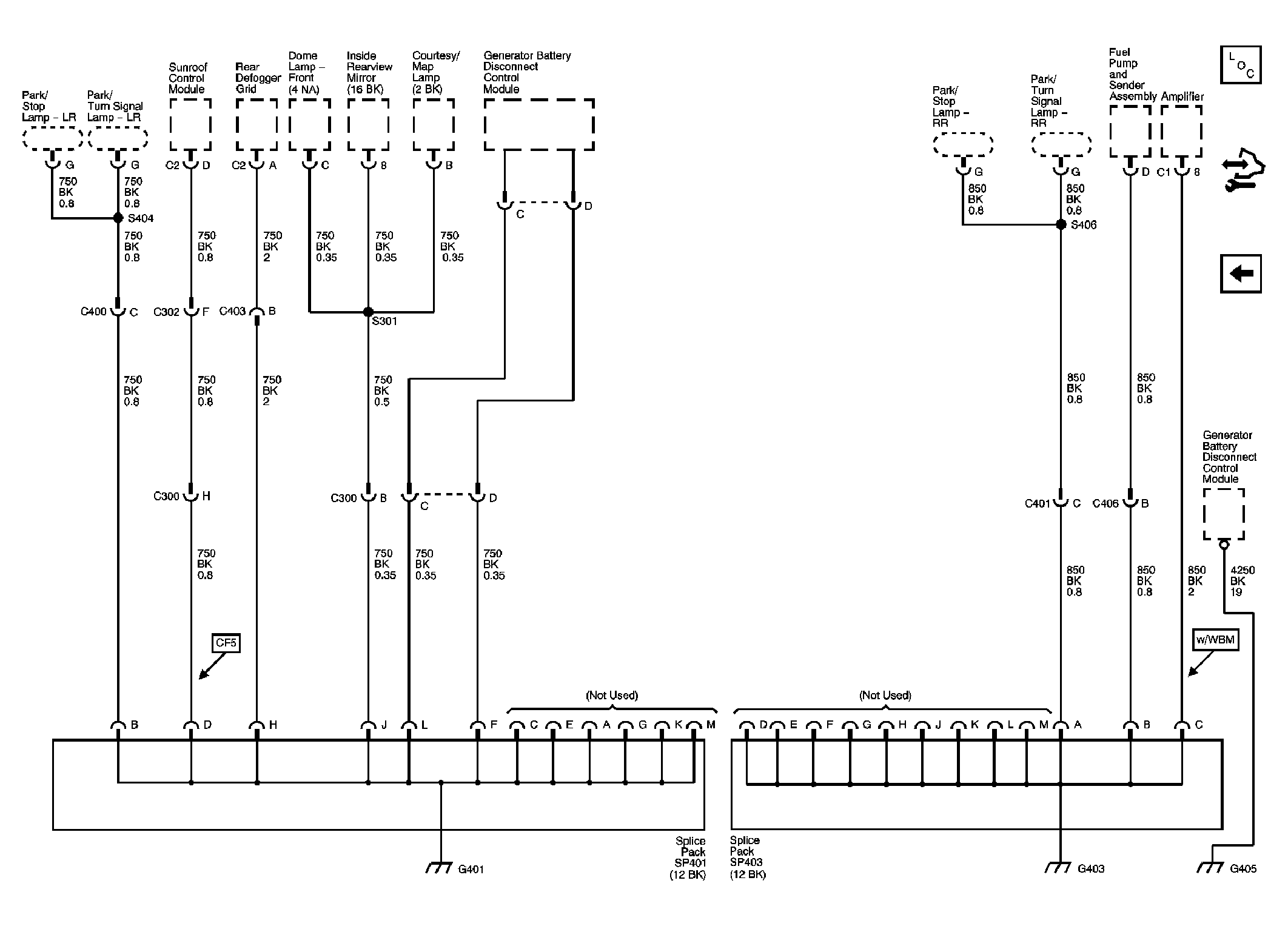

Fig 9: G401 and G403

Courtesy of GENERAL MOTORS CORP.
