Spark Plugs

WARNING: This page is about a different car, the 2003 GMC Sonoma and 2003 Chevrolet S10 Pickup. However, it is still accessible from the selected car via links, so may be relevant.
SPARK PLUG TYPE

Application Type Part No.
All Models AC 41-948
SPARK PLUG SPECIFICATIONS

Application Gap - In. (mm) Torque - Ft. Lbs. (N.m)
All Models .040 (1.02) 13 (18)

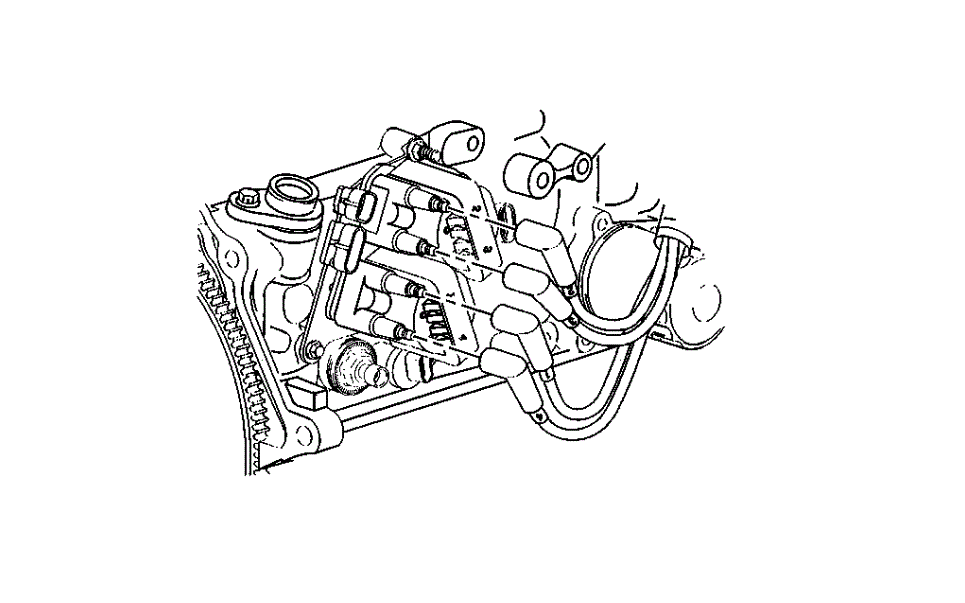

Fig 1: Spark Plug Routing (2.2L)
G00613154Courtesy of GENERAL MOTORS CORP.
