Removal Procedure

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the valve rocker arms. Refer to Valve Rocker Arm and Shaft Replacement .
  2. Remove the spark plug. Refer to Spark Plug Replacement .
  3. Install the SA9127E  and apply air pressure to the cylinder in order to keep the valve from dropping into the cylinder.
  4. Using an appropriately sized deep socket and a plastic hammer, lightly tap on the valve spring retainer to loosen the valve keepers.

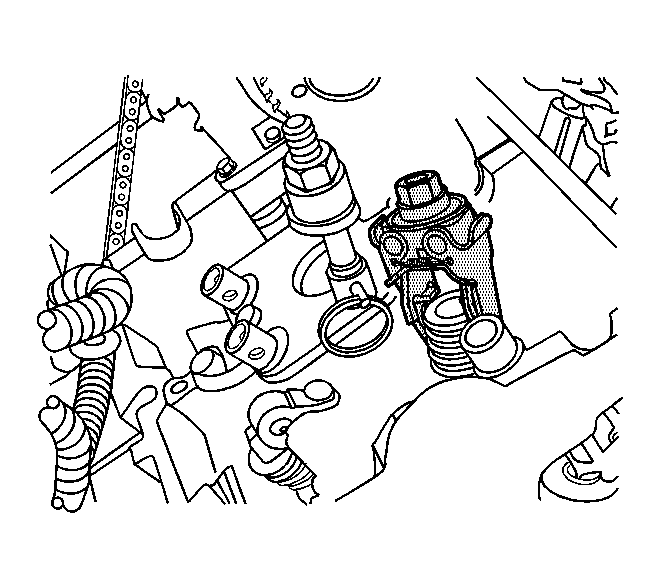

    5. Fig 1: View Of Valve Steam Seal
    GM1469798Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Compressed Valve Spring Caution .
  5. Compress the valve spring with the EN 46335  . See Special Tools .
    6. Fig 2: View Of Valve Spring Retainer
    GM263913Courtesy of GENERAL MOTORS CORP.
  6. Use the magnetic end of the J 43059  in order to remove the valve keepers (1). See Special Tools .
  7. Remove the EN 46335  . See Special Tools .
  8. Remove the valve spring retainer (2).
    9. Fig 3: View Of Valve Spring
    GM240799Courtesy of GENERAL MOTORS CORP.
  9. Remove the valve spring.

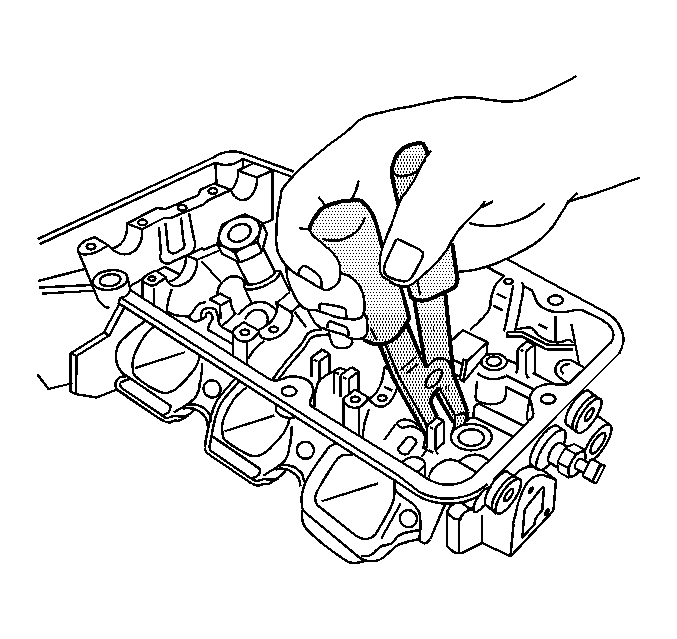

    10. Fig 4: View Of Valve Seal
    GM1357128Courtesy of GENERAL MOTORS CORP.
  10. Remove the valve seal using the SA9102E-A  . See Special Tools .
