Installation Procedure

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

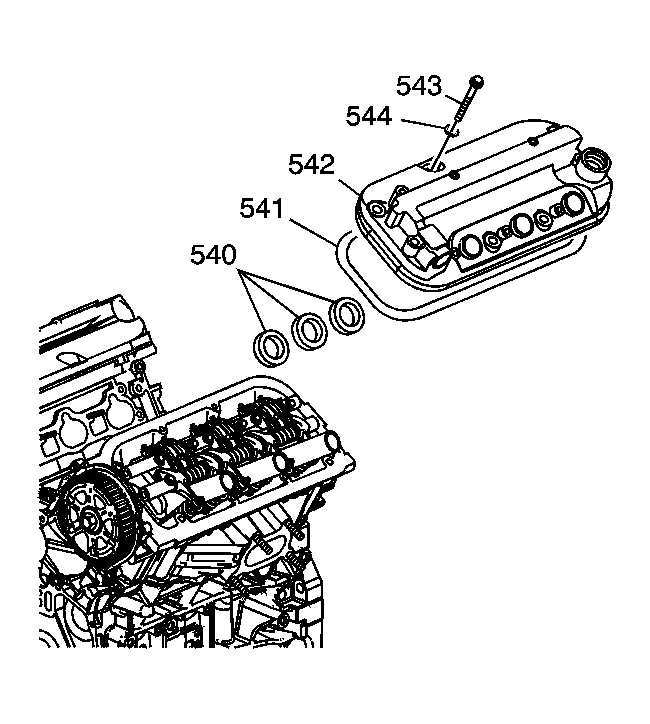

Fig 1: View Of Seals, Gasket, Cover, Grommets & Bolts

Courtesy of GENERAL MOTORS CORP.

Install NEW seals (540), NEW gasket (541), cover (542), NEW grommets (544) and bolts (543).

Fig 2: Identifying Valve Rocker Arm Cover Bolt Tightening Sequence

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Tighten the bolts in sequence.
Tighten:
1. Tighten the bolts a first pass to 6 N.m (53 lb in).
2. Tighten the bolts a final pass to 12 N.m (106 lb in).

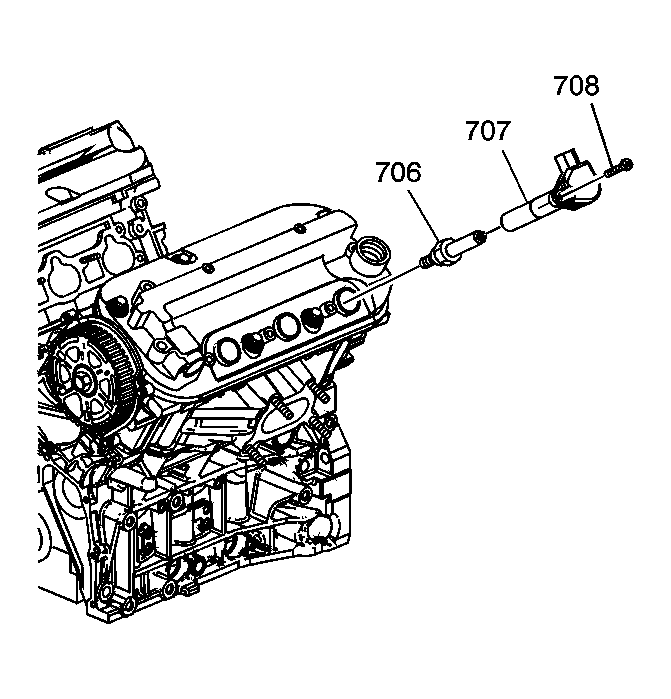

Fig 3: View Of Bolts & Ignition Coils

Courtesy of GENERAL MOTORS CORP.

Install the ignition coils (707) and bolts (708).
Tighten: Tighten the bolts to 12 N.m (106 lb in).

Fig 4: View Of Wiring Harness Bracket Bolt

Courtesy of GENERAL MOTORS CORP.

Install the wiring harness bracket bolt to the cylinder head.
Tighten: Tighten the bolt to 10 N.m (89 lb in).
Connect the ignition wiring harness to the retaining bracket and ignition coils.

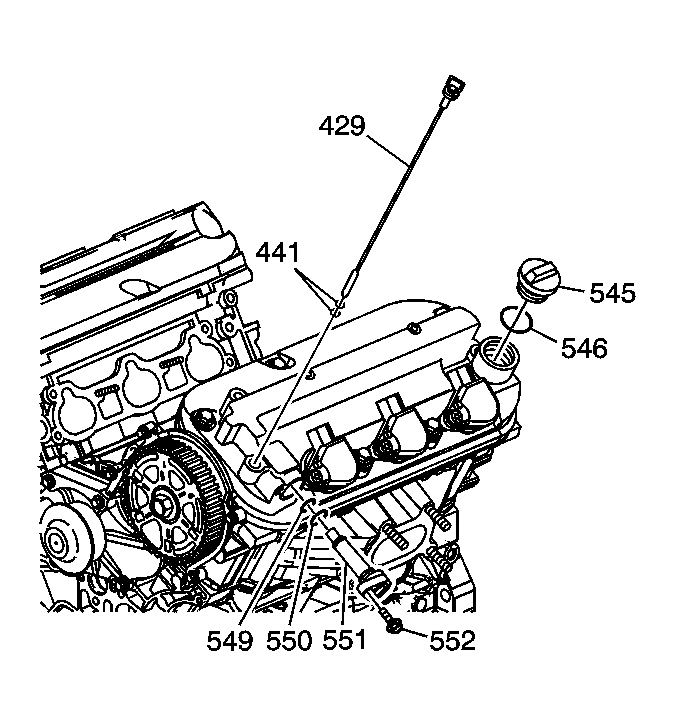

Fig 5: Identifying Oil Level Indicator, O-rings, Positive Crankcase Ventilation, Valve, Bolts & Cap

Courtesy of GENERAL MOTORS CORP.

Install the oil level indicator (429) and NEW O-rings (441).
Install the NEW O-rings (549 and 550), positive crankcase ventilation (PCV) valve (551) and bolt (552).
Tighten: Tighten the bolt to 12 N.m (106 lb in).
Install the NEW O-ring (546) and cap (545).
