Installation Procedure

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

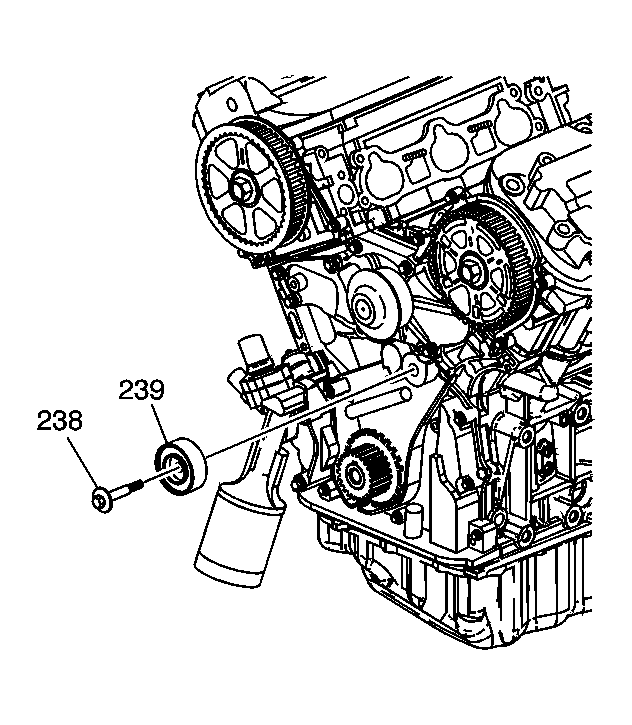

    Fig 1: View Of Timing Belt Pulley & Bolt
    GM897062Courtesy of GENERAL MOTORS CORP.
  1. Install the pulley (239).
    2. IMPORTANT: Do not tighten the idler pulley bolt (238) at this time. The idler pulley bolt is to be tightened during the timing belt installation procedure.
  2. Install the bolt (238).
  3. Install the timing belt. Refer to Timing Belt Replacement .
