Installation Procedure

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

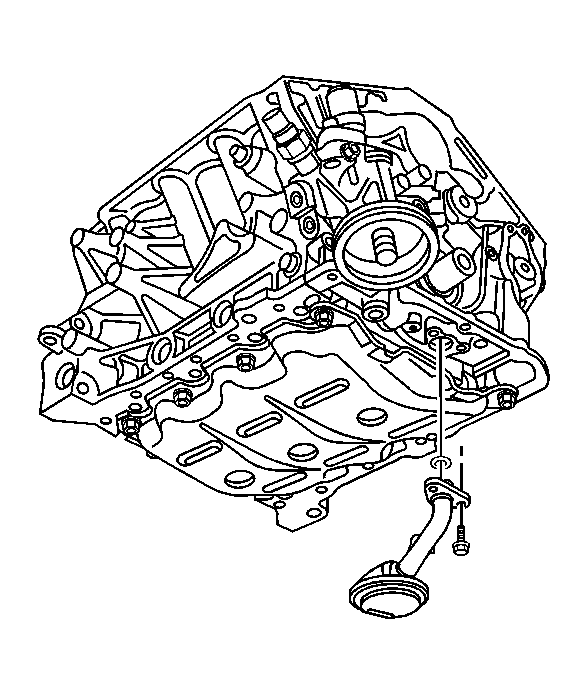

    Fig 1: View Of Oil Pipe Bolts
    GM1236181Courtesy of GENERAL MOTORS CORP.
  1. Install a NEW oil pump pipe O-ring.
  2. Install the oil pipe screen assembly.
    3. NOTE: Refer to Fastener Notice .
  3. Install the oil pump pipe bolts.

    Tighten:  Tighten the bolts to 12 N.m (106 lb in).

    4. Fig 2: View Of Oil Pump Pickup Tube
    GM1236204Courtesy of GENERAL MOTORS CORP.
  4. Install the oil pan. Refer to Oil Pan Replacement .
  5. Lower the vehicle.
  6. Refill the engine with 4.73 L (5 qt) of oil.
  7. Start the vehicle and inspect for leaks and correct oil pressure.
