Installation Procedure

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

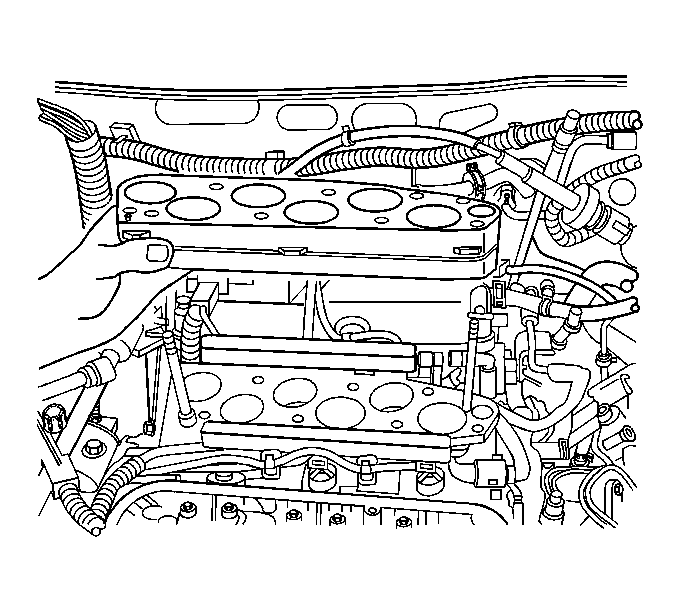

    Fig 1: View Of Intake Manifold Spacer
    GM1226497Courtesy of GENERAL MOTORS CORP.
  1. Install a NEW intake manifold spacer bottom gasket.
  2. Install the intake manifold spacer.
  3. Install a NEW intake manifold spacer top gasket.
  4. Install the intake manifold. Refer to Intake Manifold Replacement .
