Installation Procedure

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

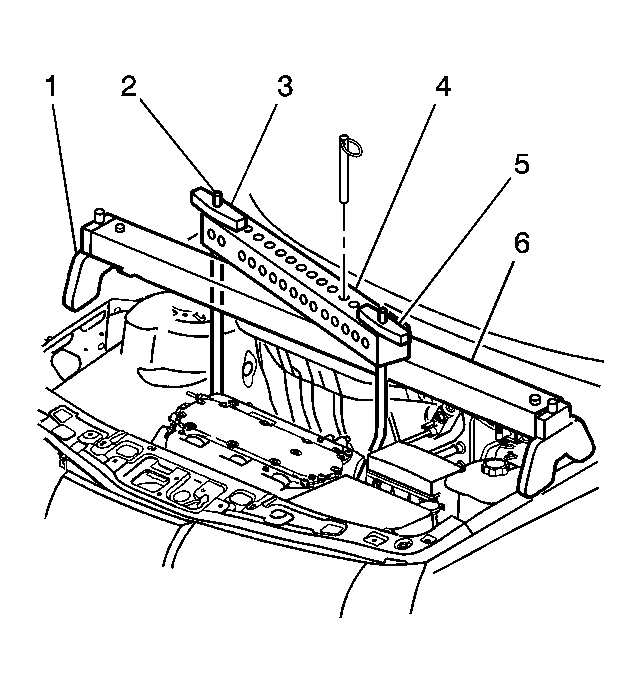

    Fig 1: View Of Engine Support Fixture
    GM1261422Courtesy of GENERAL MOTORS CORP.
  1. Install the engine support fixture long bar (6) to the vehicle.
  2. Install the engine support fixture long bar legs (1).
  3. Install the crossbar (4) to the engine support fixture long bar.
  4. Install the lift hook (2) to the rear of the engine support fixture crossbar, and install the lift hook wing nut (3).
  5. Install the lift hook (5) to the front of the engine support fixture crossbar, and install the lift hook wing nut (3).
  6. Install the engine support fixture long bar to crossbar holding pin.
