Removal Procedure

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .

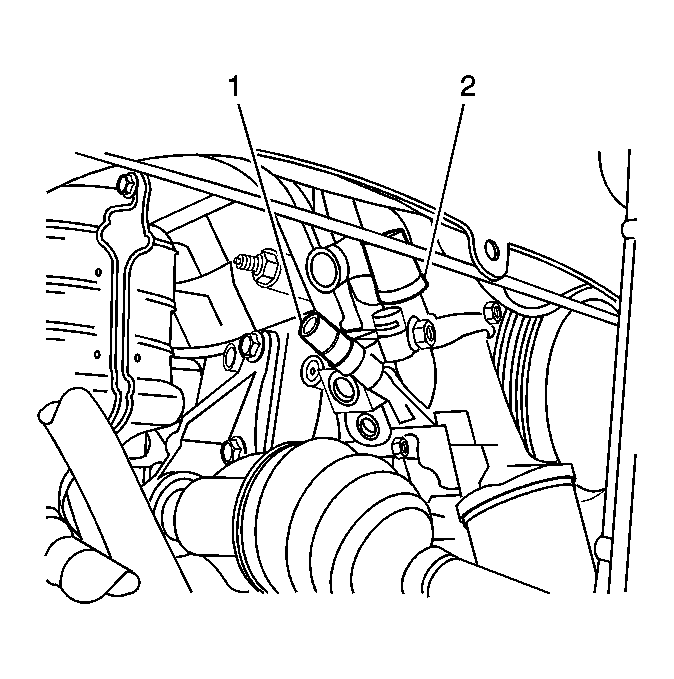

    2. Fig 1: View Of Oil Pressure Sensor Connector
    GM1226512Courtesy of GENERAL MOTORS CORP.
  2. Disconnect the oil pressure sensor connector.
  3. Remove the oil pressure sensor (1).
