Installation Procedure

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

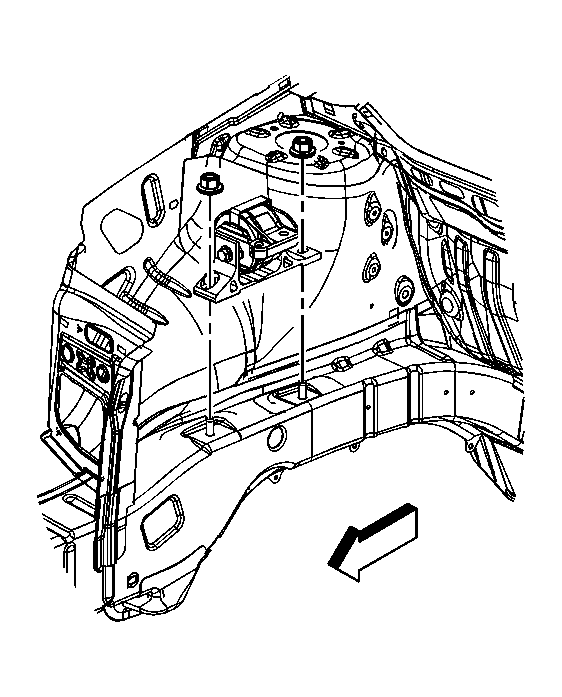

    Fig 1: Identifying Engine Mount
    GM1239277Courtesy of GENERAL MOTORS CORP.
  1. Position the engine mount onto the frame rail studs.
    2. NOTE: Refer to Fastener Notice .
  2. Install the engine mount to frame rail stud nuts.

    Tighten:  Tighten the nuts to 110 N.m (81 lb ft).

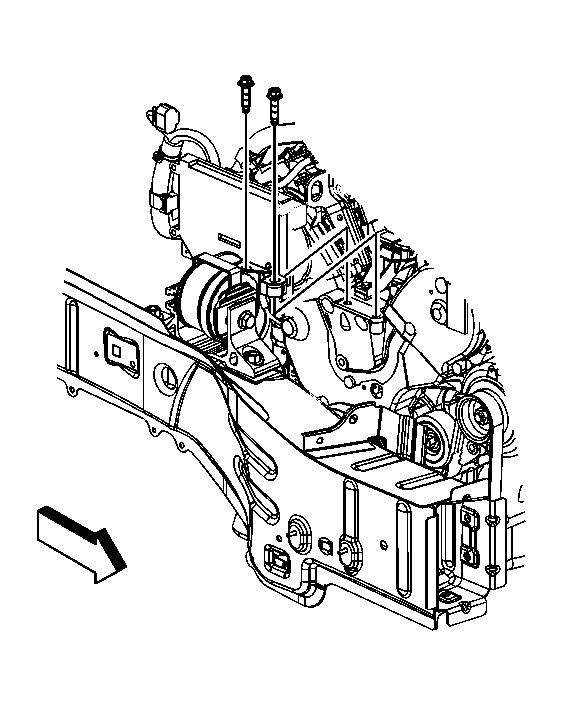

    3. Fig 2: View Of Engine Mount
    GM1239275Courtesy of GENERAL MOTORS CORP.
  3. Install the engine mount to engine mount bracket bolts. Take care when aligning the engine mount to engine mount bracket bolt holes, while hand tightening all the bolts.
  4. Tighten the engine mount to engine mount bracket bolts.

    Tighten:  Tighten the bolts to 110 N.m (81 lb ft).

  5. Lower the vehicle.
  6. Remove the engine support. Refer to Engine Support Fixture .
  7. Install the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .
