Installation Procedure

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

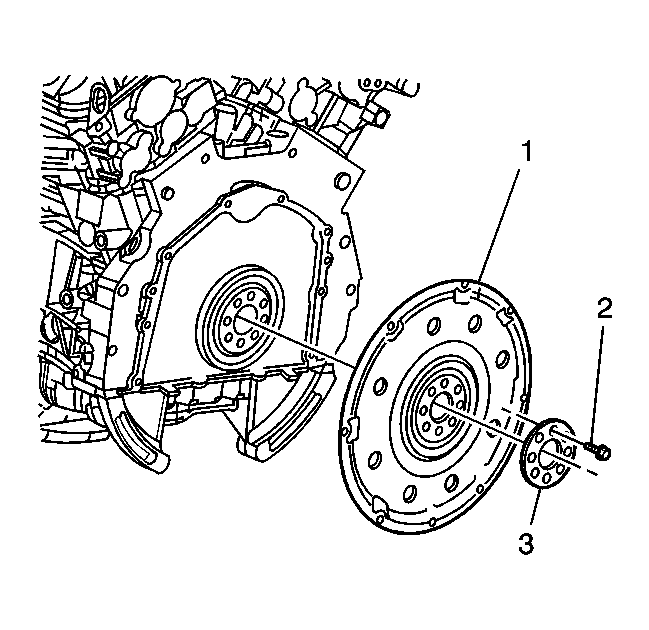

    Fig 1: View Of Engine Flywheel
    GM1336933Courtesy of GENERAL MOTORS CORP.
  1. Position the flywheel (1) and flywheel washer (3) on the crankshaft as previously noted.
    2. Fig 2: Identifying Flywheel Bolt Tightening Sequence
    GM897023Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  2. Install the flywheel bolts (2).
  3. Tighten the flywheel bolts in sequence.

    Tighten:  Tighten the flywheel bolts in sequence to 74 N.m (54 lb ft).

  4. Install the transmission. Refer to Transmission Replacement .
