Installation Procedure

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

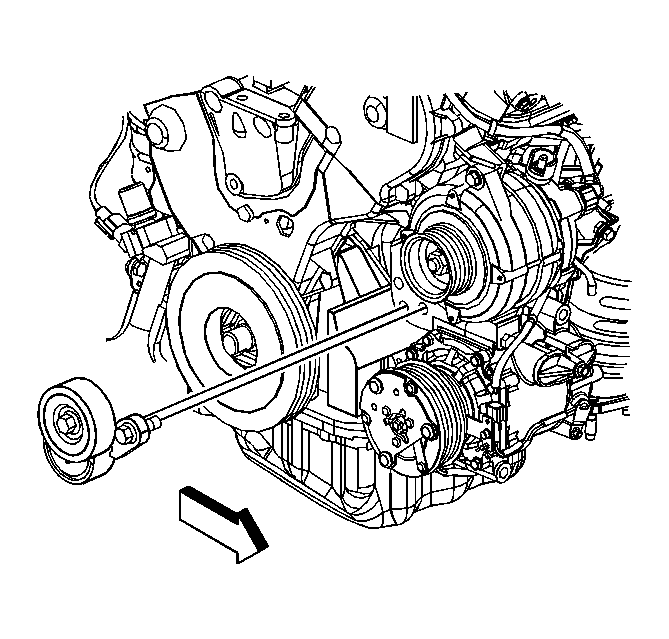

    Fig 1: View Of Drive Belt Tensioner
    GM1236200Courtesy of GENERAL MOTORS CORP.
  1. Install the drive belt tensioner.
    2. NOTE: Refer to Fastener Notice .
  2. Install the drive belt tensioner bolts.

    Tighten:  Tighten the drive belt tensioner bolts to 22 N.m (16 lb ft).

  3. Install the drive belt. Refer to Drive Belt Replacement .
