Timing Belt Cover Installation

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

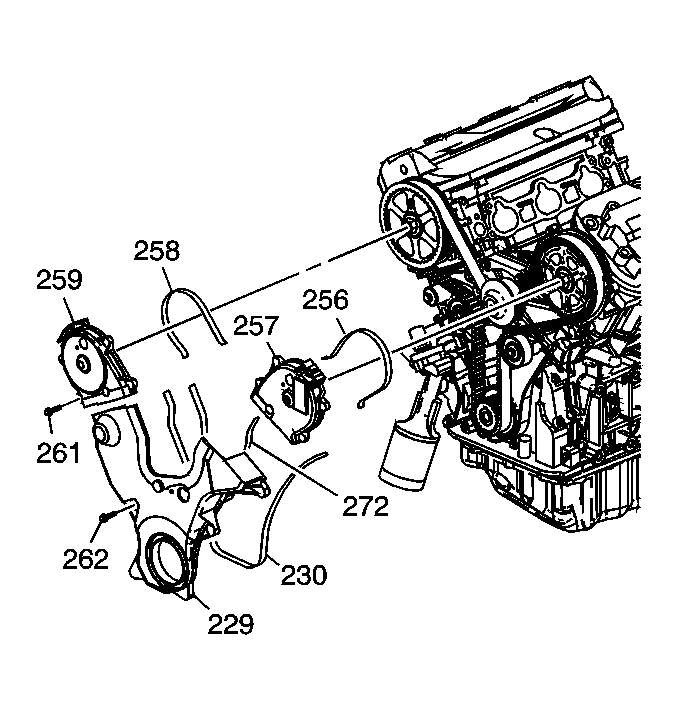

    Fig 1: View Of Timing Belt Cover
    GM897038Courtesy of GENERAL MOTORS CORP.
  1. Install the seals (230, 256, 258 and 272).
  2. Install the cover (229).
    3. NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the bolts (262).

    Tighten:  Tighten the bolts to 12 N.m (106 lb in).

  4. Install the covers (257 and 259).
  5. Install the bolts (261).

    Tighten:  Tighten the bolts to 12 N.m (106 lb in).
