Oil Pan Installation

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: View Of Oil Pan

Courtesy of GENERAL MOTORS CORP.

Clean and dry the oil pan mating surfaces.
Apply sealant GM P/N 12346240 (Canadian P/N 10953493), or equivalent, evenly to the oil pan mating surface (1) of the engine block.

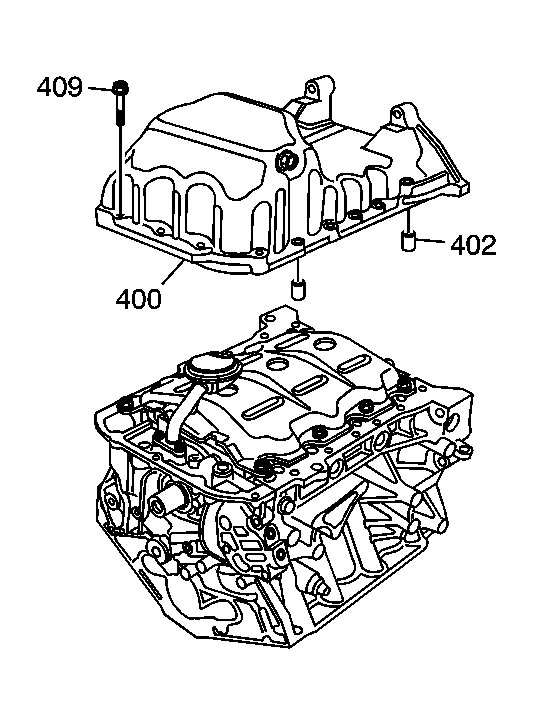

Fig 2: View Of Pins, Oil Pan & Bolts

Courtesy of GENERAL MOTORS CORP.

Install the pins (402).
Install the oil pan (400).

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the bolts (409).

Fig 3: Oil Pan Bolt TIghtening Sequence

Courtesy of GENERAL MOTORS CORP.

Tighten the bolts.
Tighten:
1. Tighten the bolts in sequence a first pass to 6 N.m (53 lb in).
2. Tighten the bolts in sequence a final pass to 12 N.m (106 lb in).
