Oil Flow Control Module Removal

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

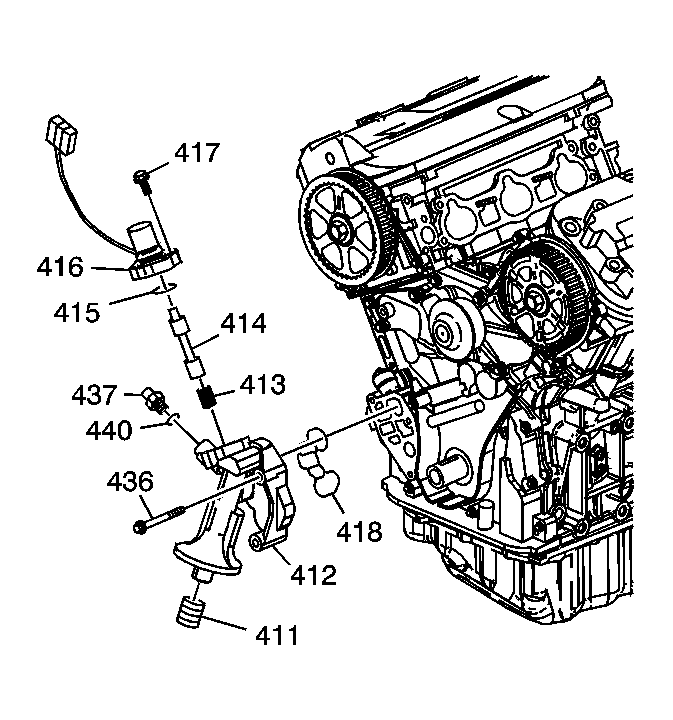

    Fig 1: Exploded View Of Oil Control Module
    GM897069Courtesy of GENERAL MOTORS CORP.
  1. Remove the bolts (436).
  2. Remove the module (412) and O-ring (418).
  3. Remove the bolts (417), solenoid (416) and O-ring (415), if required.
  4. Remove the valve (414) and spring (413).
  5. Remove the switch (437) and O-ring (440), if required.
  6. Remove the fitting (411), if required.
