Engine Lift Bracket Installation

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

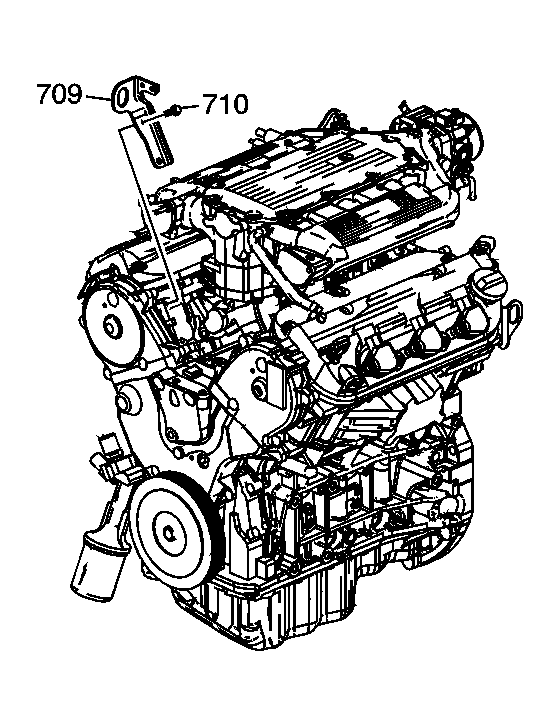

    Fig 1: View Of Engine Bracket
    GM897040Courtesy of GENERAL MOTORS CORP.
  1. Install the bracket (709).
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the bolts (710).

    Tighten:  Tighten the bolts to 12 N.m (106 lb in).
