Engine Flywheel Installation

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

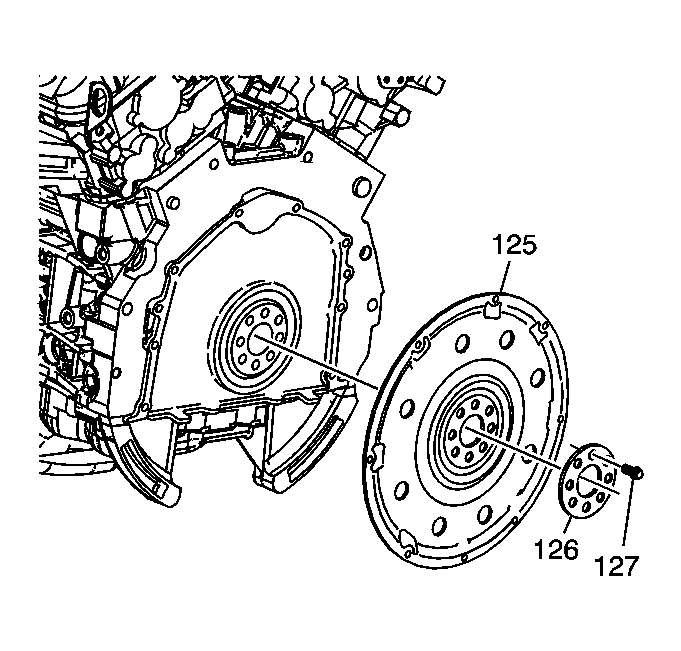

Fig 1: View Of Engine Flywheel

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the flywheel (125), washer (126) and bolts (127).

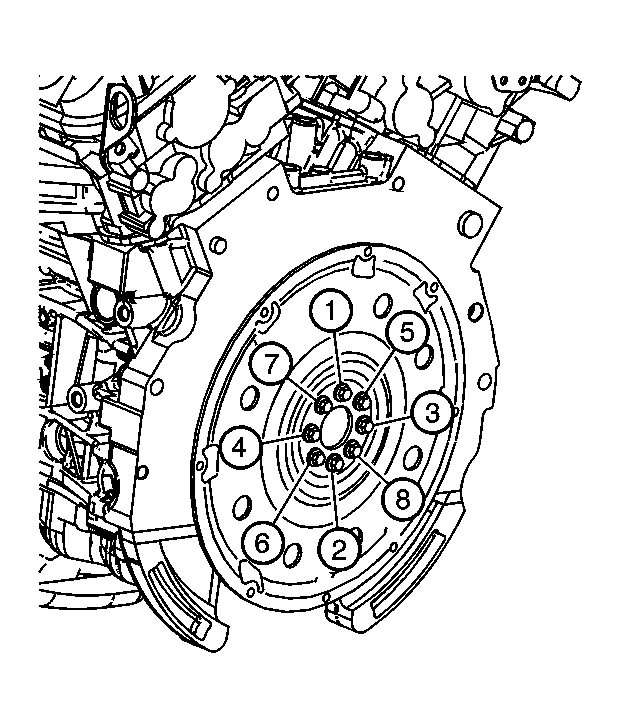

Fig 2: Identifying Flywheel Bolt Tightening Sequence

Courtesy of GENERAL MOTORS CORP.

Tighten the bolts in sequence.
Tighten: Tighten the bolts in sequence to 74 N.m (54 lb ft).
