Vehicle Certification, Tire Place Card, Anti-Theft, and Service Parts ID Label

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

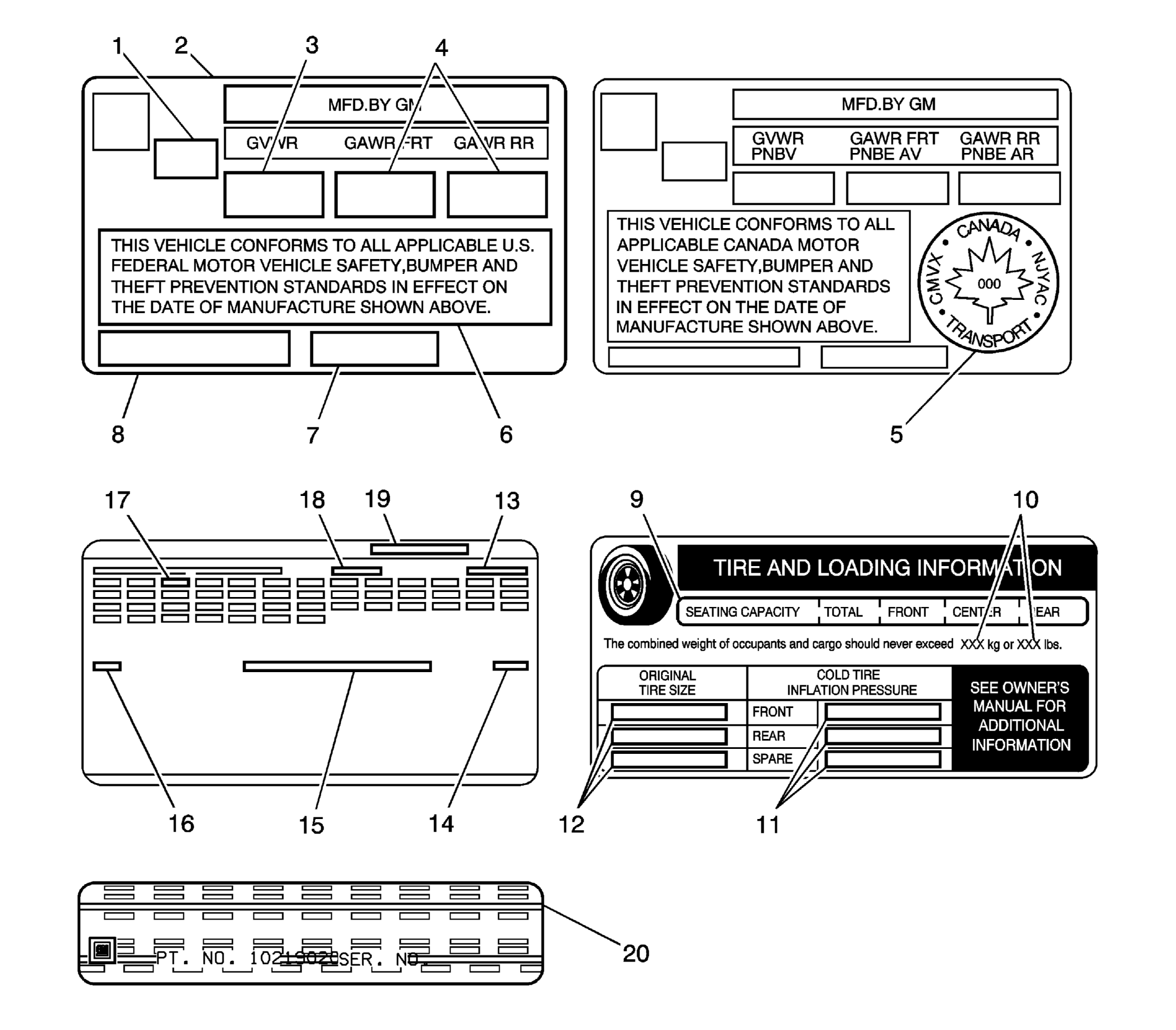

Fig 1: Identifying Vehicle Certification, Tire Place Card, Anti-Theft and Service Parts ID Label

Courtesy of GENERAL MOTORS CORP.

Callout	Description
Vehicle Certification Label The vehicle certification label is located on the driver door and displays the following assessments: Gross Vehicle Weight Rating (GVWR) Gross Axle Weight Rating (GAWR), front and rear The gross vehicle weight (GVW) is the weight of the vehicle and everything it carries. The gross vehicle weight must not exceed the Gross Vehicle Weight Rating. Include the following items when figuring the GVW: The base vehicle weight (factory weight) The weight of all vehicles accessories The weight of the driver and the passengers The weight of the cargo
1	Name of Manufacturer
2	Gross Vehicle Weight Rating
3	Gross Axle Weight Rating (Front, Rear)
4	Canadian Safety Mark (w/RPO Z49)
5	Certification Statement
6	Vehicle Class Type (Pass Car, etc.)
7	Vehicle Identification Number
8	Date of Manufacture (Mo/Yr)
Tire Placard The tire placard label is located on the center pillar and displays the following assessments:
9	Specified Occupant Seating Positions
10	Maximum Vehicle Capacity Weight
11	Original Equipment Tires Size
12	Tire Pressure, Front, Rear, and Spare (Cold)
Service Parts ID Label The vehicle service parts identification label is located in the driver side rear door. The label is use to help identify the vehicle original parts and options.
13	Model Designation
14	Order Number
15	Exterior Color
16	Paint Technology
17	Vehicle Identification Number
18	Wheel Base
19	Part Number Location
Anti-Theft Label
20	The Federal law requires that General Motors label certain body parts on this vehicle with the VIN. The purpose of the law is to reduce the number of motor vehicle thefts by helping in the tracing and recovery of parts from stolen vehicles. Labels are permanently affixed to an interior surface of the part. The label on the replacement part contains the letter R, the manufacture's logo, and the DOT symbol. The anti-theft label must be covered before any painting, and rustproofing procedures, and uncovered after the procedures. Failure to follow the precautionary steps may result in liability for violation of the Federal Vehicle Theft Prevention Standard and possible suspicion to the owner that the part was stolen.
