Installation Procedure

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: Ensure that there is not excessive RTV material around the oil pick-up gallery flange area. Engine damage may occur if excessive material is drawn into the oil pump assembly.
    IMPORTANT: Ensure that the mating surfaces are clean and free of debris. Allow adequate time to allow for the oil pump to drain. This will prevent oil from dripping on the mating flange during installation.
    Fig 1: Applying 2 mm bead of Permatex(R) To The Oil Pan
    GM897579Courtesy of GENERAL MOTORS CORP.
  1. Clean oil from the mating surface before the oil pan is installed to assure a proper seal. Oil may drain from the oil pump assembly.
  2. Apply a 3.5 mm (0.138 in) bead of sealant to the oil pan. Refer to Sealers, Adhesives, and Lubricants  for the correct part number.
  3. Ensure the engine block to oil pan mating surfaces are clean and dry.
  4. Place the oil pan into position and hand tighten the pan bolts.
    5. NOTE: Refer to Fastener Notice .
  5. Tighten the oil pan using the appropriate sequence.

    Tighten:  Tighten the oil pan bolts - L61 to 15 N.m (11 lb ft).

    6. Fig 2: Removing/Installing Oil Pan Drain Plug
    GM895572Courtesy of GENERAL MOTORS CORP.
  6. Install the oil pan drain plug.

    Tighten:  Tighten the oil pan drain plug - L61 to 25 N.m (18 lb ft).

    7. Fig 3: Removing/Installing Lower A/C Compressor Bolt
    GM931170Courtesy of GENERAL MOTORS CORP.
  7. Install the lower A/C bolt.

    Tighten:  Tighten the A/C compressor bolt - L61 to 20 N.m (15 lb ft).

  8. Lower the vehicle.
  9. Install the right hand engine mount.

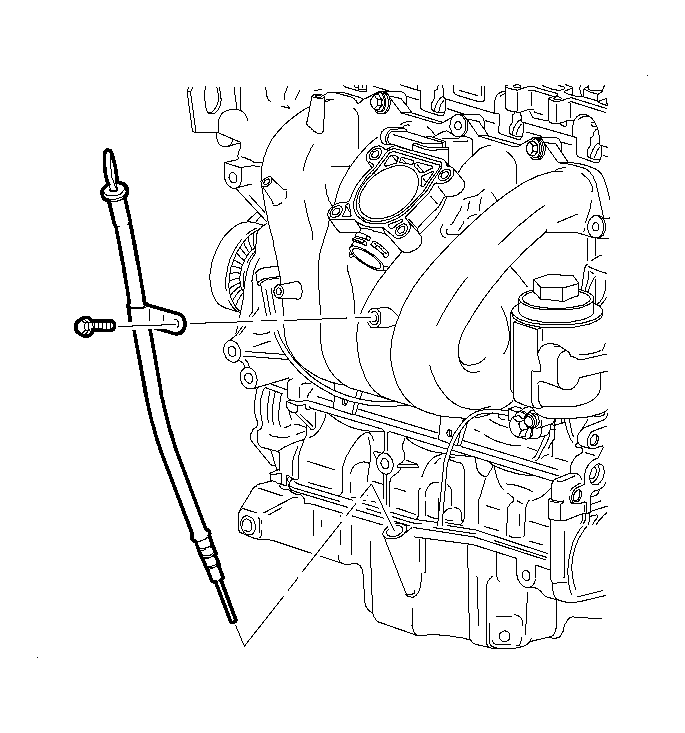

    10. Fig 4: View Of Oil Level Indicator Tube
    GM894937Courtesy of GENERAL MOTORS CORP.
  10. Install the oil level indicator tube into the block.
  11. Install the oil level indicator tube bolt.

    Tighten:  Tighten the oil level indicator tube bolt - L61 to 10 N.m (89 lb in).

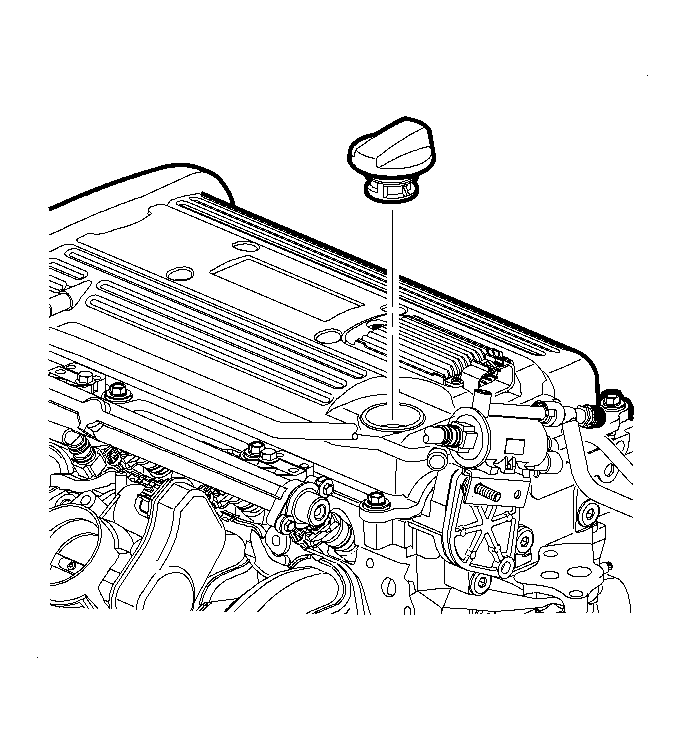

    12. Fig 5: Removing/Installing Oil Fill Cap
    GM947002Courtesy of GENERAL MOTORS CORP.
  12. Remove the oil fill cap.
  13. Fill the engine with 4.73 L (5 qt) of new 5W-30 engine oil.
  14. Install the oil fill cap.
    15. IMPORTANT: The oil level should be checked on a level surface.
  15. Start the engine and inspect for leaks.
  16. Check the engine oil level after the engine is OFF for 5 minutes. This will allow the engine oil to drain down into the oil pan from the cylinder head.
  17. Verify the oil level and inspect for leaks.
