Installation Procedure

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Removing & Installing Damper Assembly
    GM895197Courtesy of GENERAL MOTORS CORP.
  1. Lubricate the front seal and sealing surface of the pulley with clean motor oil.
  2. Install the balancer pulley onto the crankshaft indexing keyway. Use care to properly align the flats on the balancer pulley with the flats on the oil pump drive in the front cover assembly.
  3. Install the crankshaft damper pulley.
  4. Install a new crankshaft balancer pulley bolt with washer assembly.

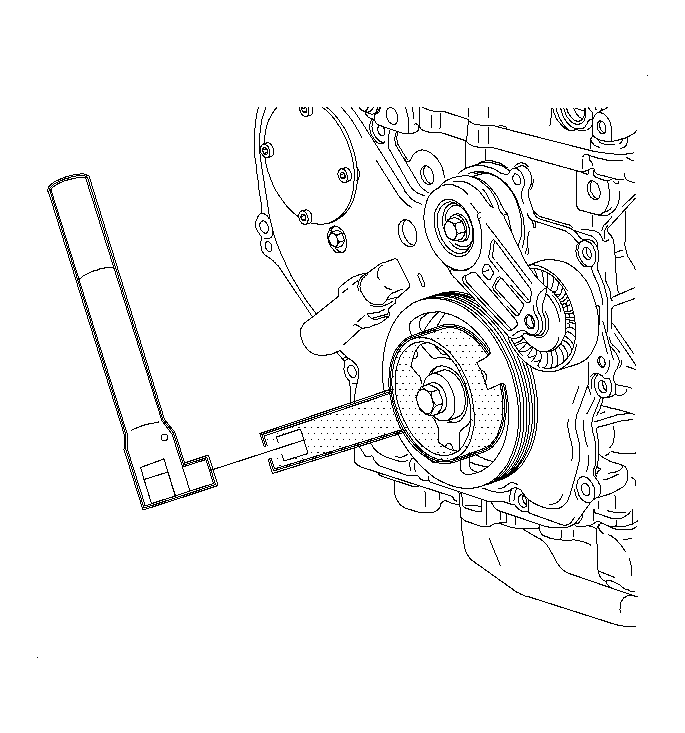

    5. Fig 2: Removing & Installing Harmonic Balancer Using Holder On Damper Assembly
    GM895194Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  5. Install the J 38122-A  .

    Tighten:  Tighten the crankshaft pulley bolt to 100 N.m (74 lb ft) +75 degrees.

    6. Fig 3: Depressing Tensioner Arm
    GM896375Courtesy of GENERAL MOTORS CORP.
  6. Route the belt around the alternator and A/C compressor.
    7. Fig 4: View Of Drive Belt Tensioner Tool
    GM951829Courtesy of GENERAL MOTORS CORP.
  7. Install the J 44811  onto the tensioner and unload the spring tension from the tensioner while positioning the belt.
  8. Release the tensioner and remove the tool.
  9. Install the right engine inner splash shield.
  10. Install the right wheel and hand tighten the nuts.
  11. Lower the vehicle.

    Tighten:  Tighten the wheel nuts to 125 N.m (92 lb ft).
