Intake Manifold Installation

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

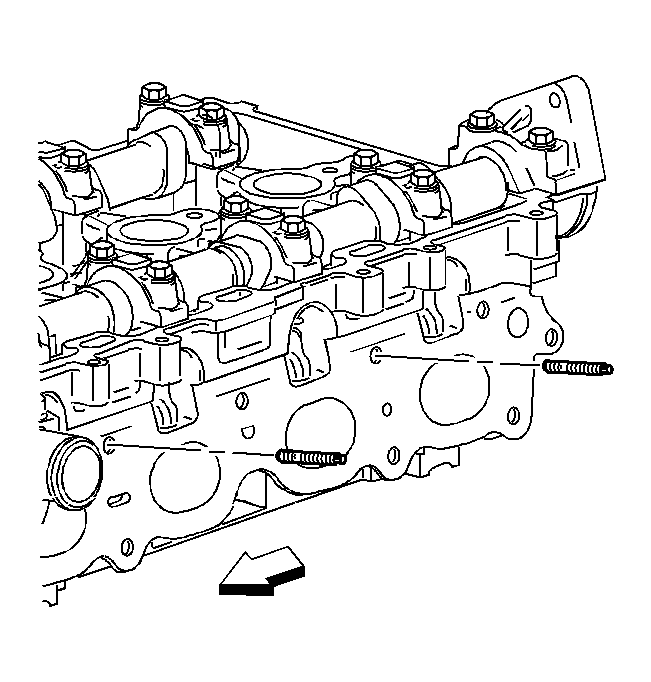

Fig 1: View Of Intake Manifold Studs

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the intake manifold studs in the manifold face.
Tighten: Tighten the intake manifold studs to 6 N.m (60 lb in).

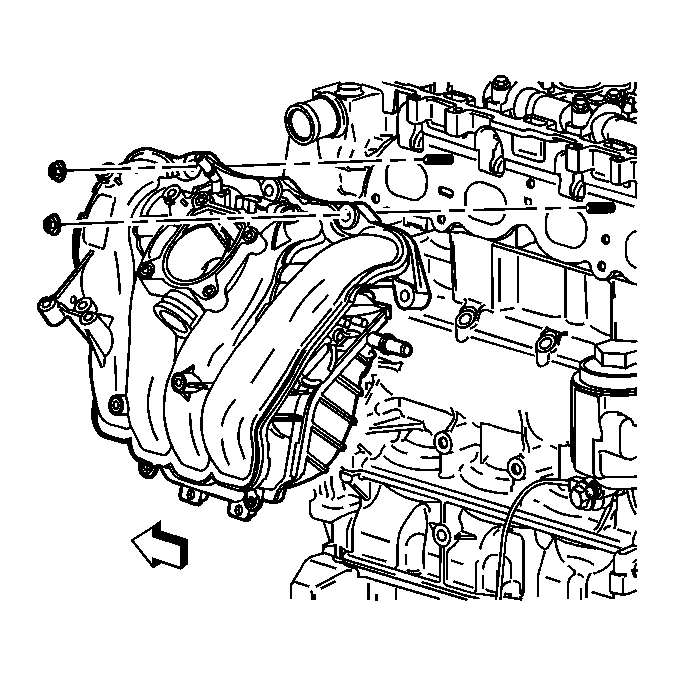

Fig 2: Removing & Installing Intake Manifold

Courtesy of GENERAL MOTORS CORP.

IMPORTANT: Gaskets must be clean. Swollen gaskets should be replaced.

Install a NEW intake manifold gasket on the intake manifold, if necessary.
Install the intake manifold.
Install the intake manifold bolts and nuts. Follow the tightening sequence.
Tighten: Tighten the bolts and nuts to 10 N.m (89 lb in).

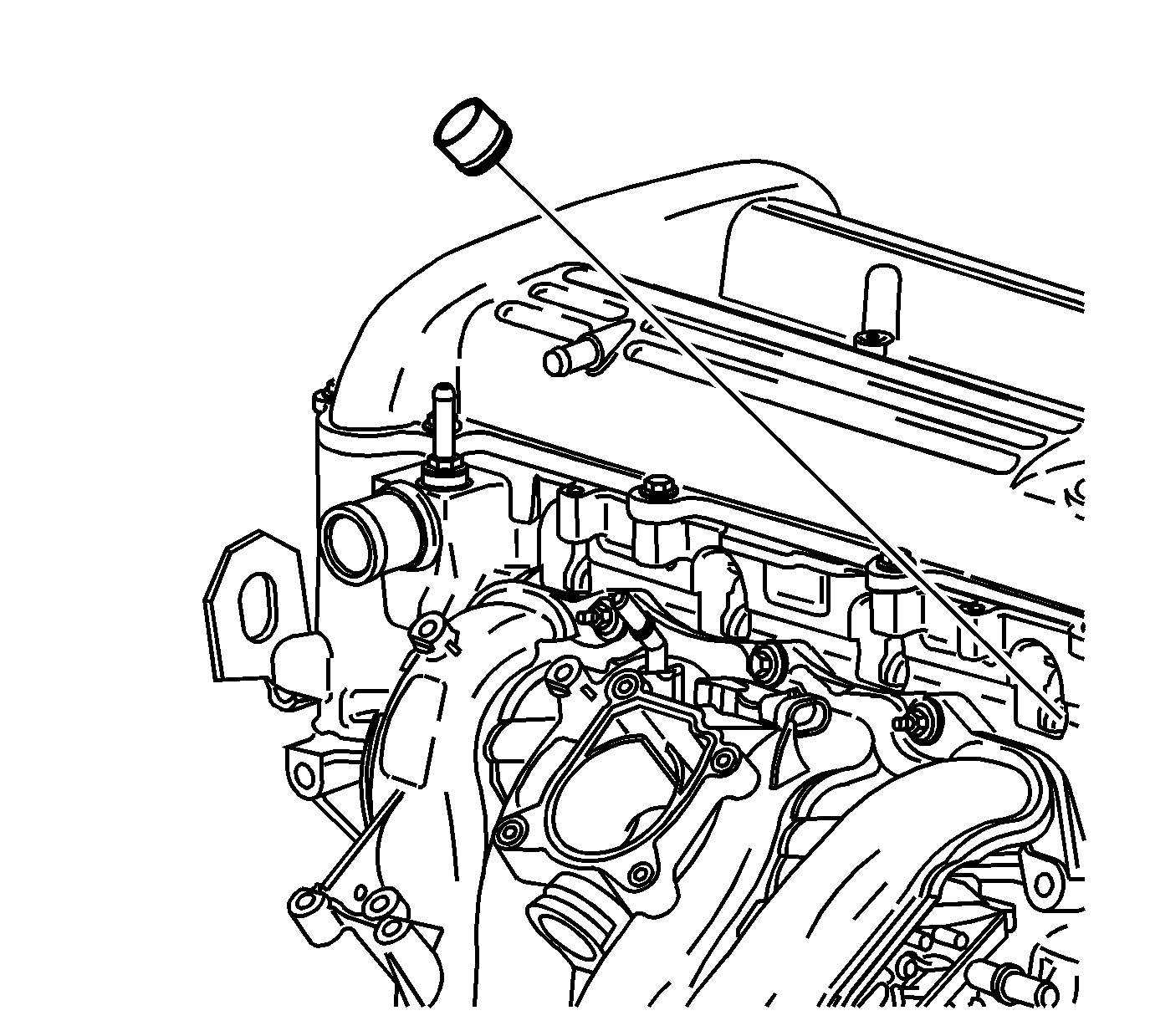

Fig 3: View Of Fuel Injector Tip Insulators

Courtesy of GENERAL MOTORS CORP.

Lubricate NEW fuel injector tip insulators with engine oil.
Install the NEW fuel injector tip insulators.

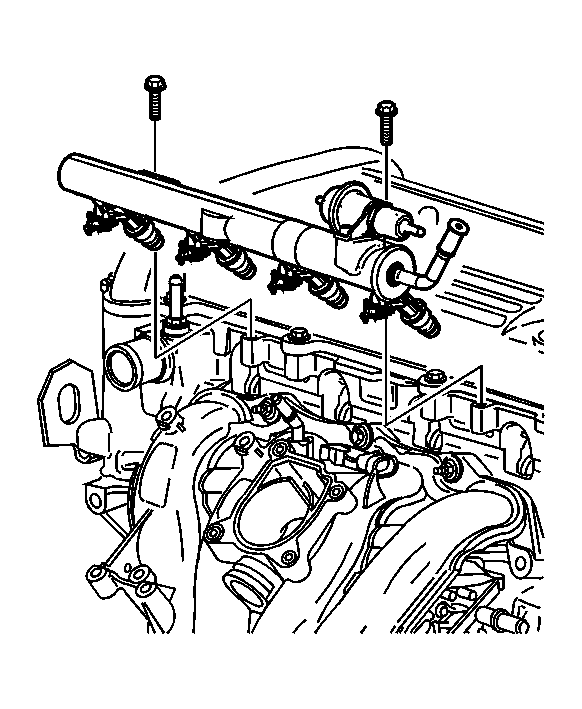

Fig 4: Identifying Fuel Rail Assembly

Courtesy of GENERAL MOTORS CORP.

Install the fuel rail assembly.
Install the fuel rail bolts.
Tighten: Tighten the bolts to 10 N.m (89 lb in).

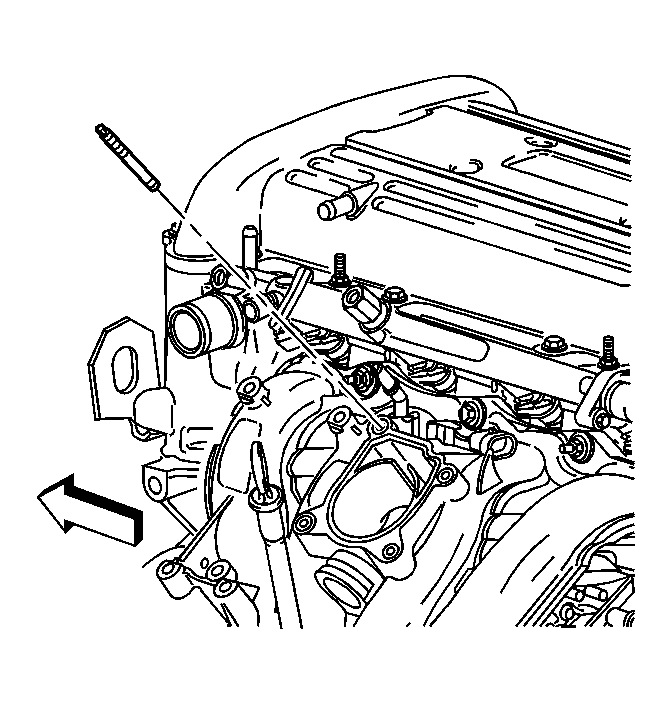

Fig 5: Identifying Throttle Body Stud

Courtesy of GENERAL MOTORS CORP.

Install a NEW throttle body stud, if necessary.
Tighten: Tighten the bolts and nuts to 6 N.m (60 lb in).

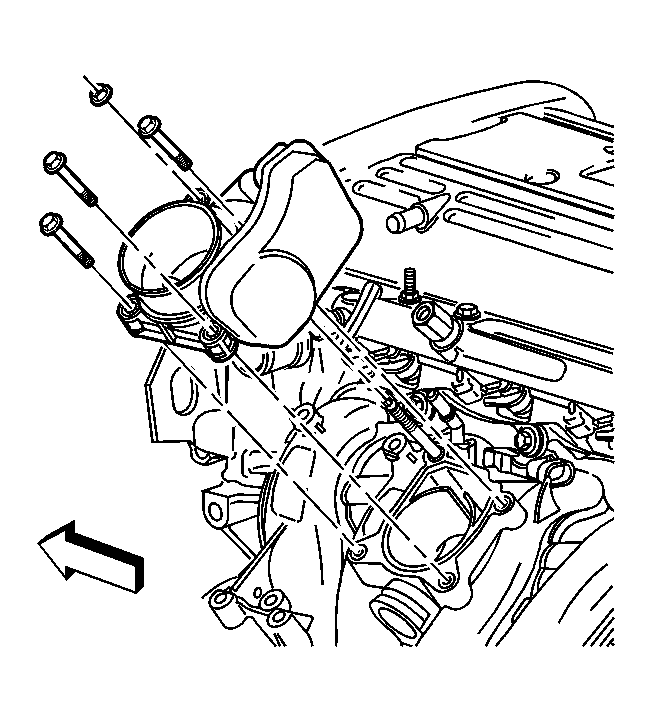

Fig 6: View Of Throttle Body & Retaining Bolts

Courtesy of GENERAL MOTORS CORP.

Install the throttle body, bolts and nut.
Tighten: Tighten the bolt and nuts to 10 N.m (89 lb in).

Fig 7: View Of EVAP Emission Canister Valve & Tube

Courtesy of GENERAL MOTORS CORP.

IMPORTANT: Ensure that the rear metal tab of the evaporative emission (EVAP) canister valve is resting on the power steering pump metal body.

Install the EVAP canister valve (2).
Tighten: Tighten the EVAP canister valve nut to 18 N.m (13 lb ft).
Install the EVAP canister valve tube (1).
