Exhaust Manifold Removal

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Removing & Installing Exhaust Manifold Heat Shield
    GM746055Courtesy of GENERAL MOTORS CORP.
  1. Remove the exhaust manifold heat shield.

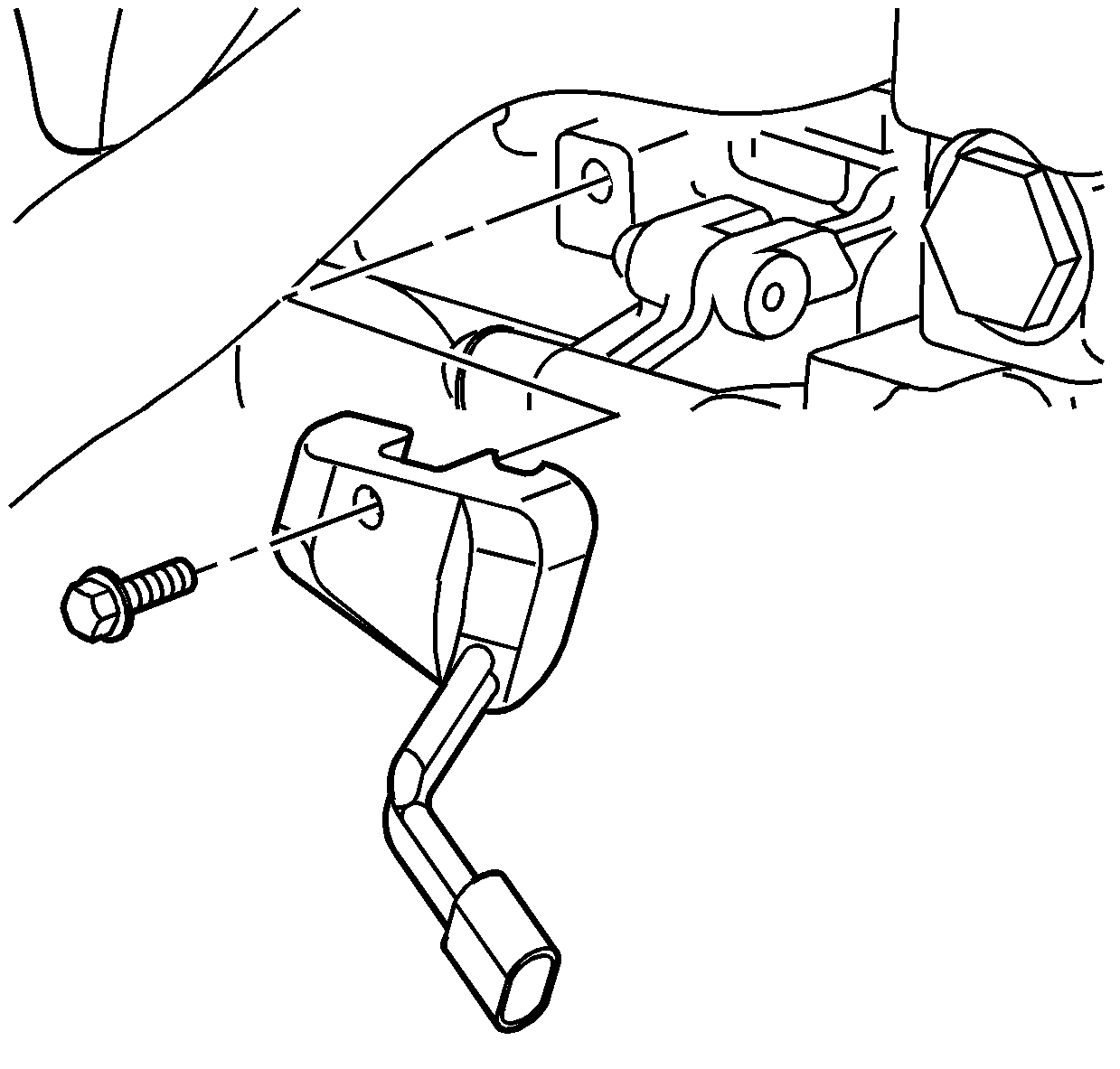

    2. Fig 2: View Of Block Heater
    GM825111Courtesy of GENERAL MOTORS CORP.
  2. Remove the block heater if equipped.

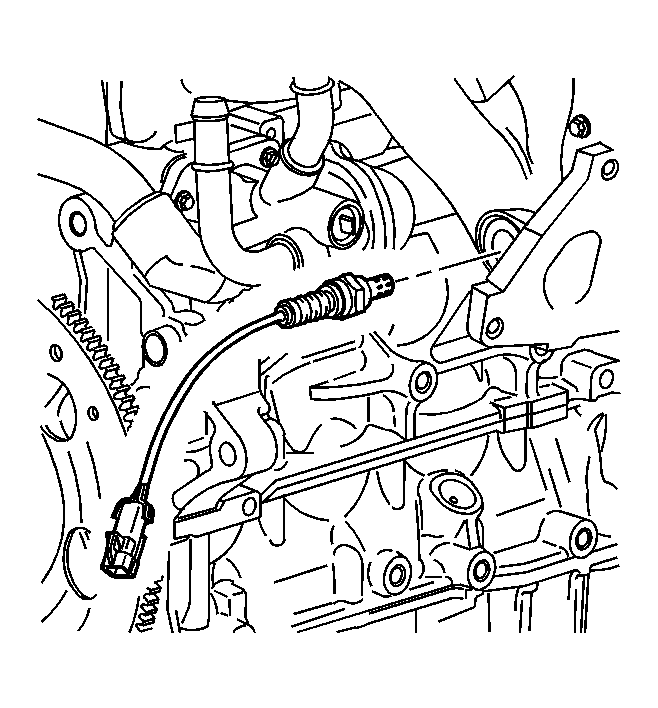

    3. Fig 3: Identifying Oxygen Sensor
    GM865339Courtesy of GENERAL MOTORS CORP.
  3. Remove the oxygen sensor.

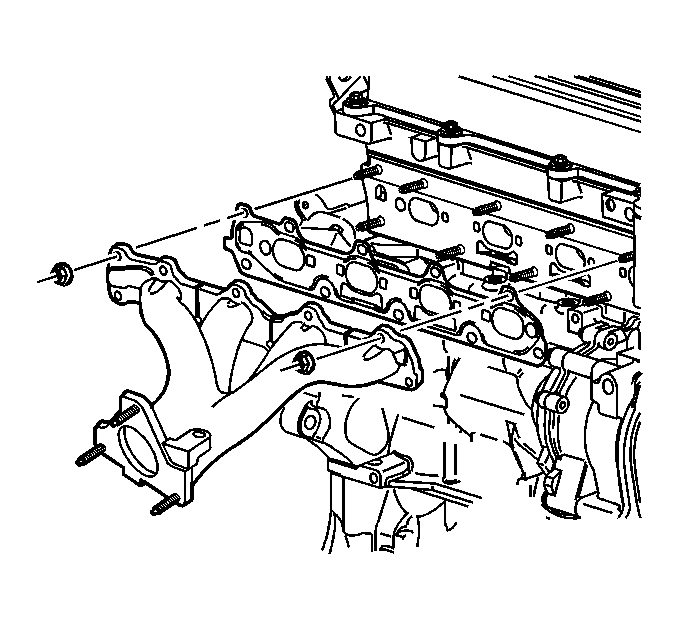

    4. Fig 4: View Of Exhaust Manifold & Gasket
    GM746061Courtesy of GENERAL MOTORS CORP.
  4. Remove and discard the exhaust manifold to cylinder head retaining nuts.
  5. Remove the exhaust manifold.
  6. Clean all of the sealing surfaces.
  7. If the exhaust manifold is being replaced, transfer the following parts:
    • The exhaust manifold heat shield
    • The oxygen sensor
