Engine Front Cover and Oil Pump Installation

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

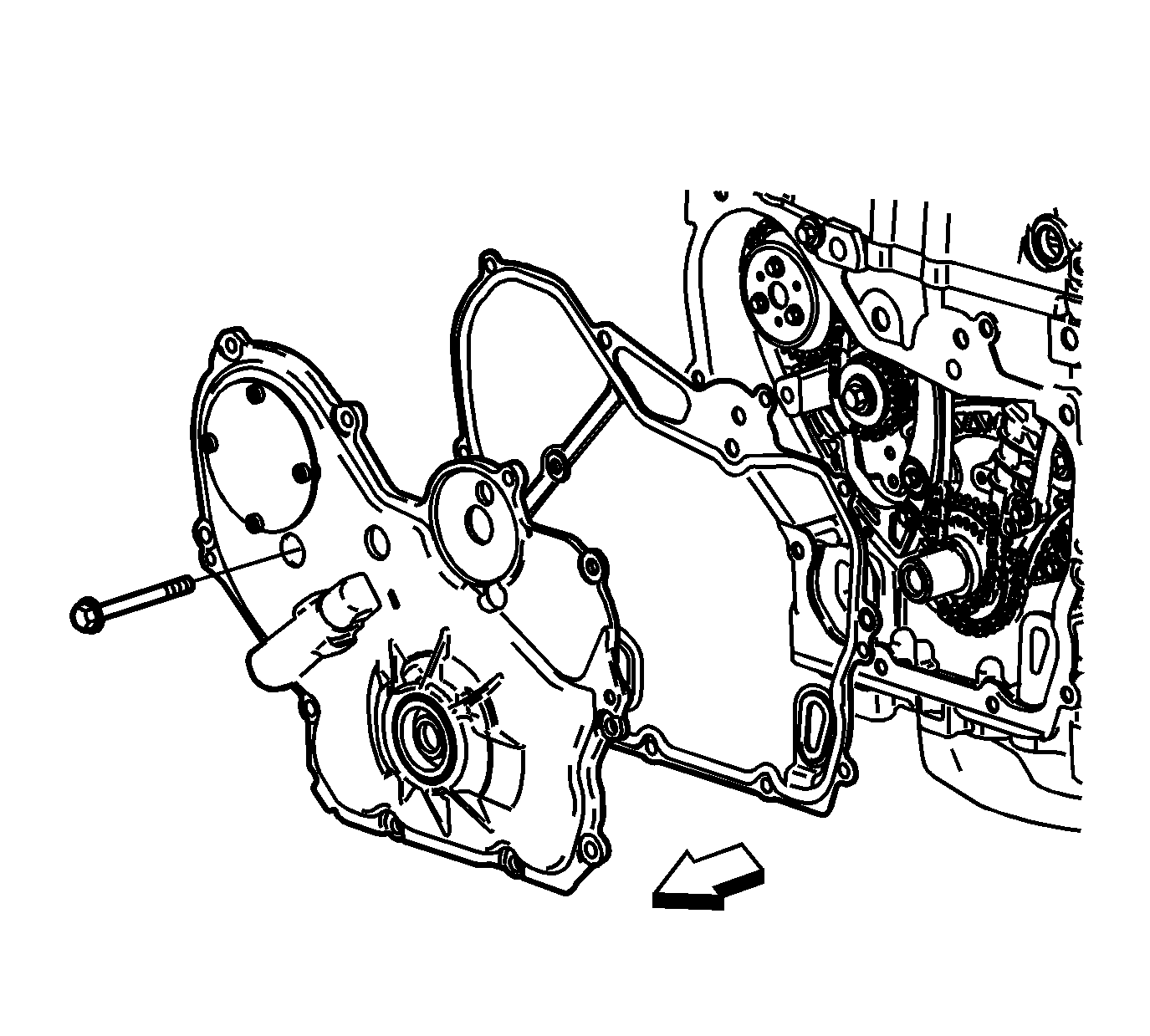

    Fig 1: View Of Engine Front Cover
    GM412537Courtesy of GENERAL MOTORS CORP.
  1. Install the engine front cover with a new gasket.
    2. NOTE: Refer to FASTENER NOTICE .
  2. Install the long water pump bolt.

    Tighten:  Tighten the water pump bolt to 25 N.m (18 lb ft).

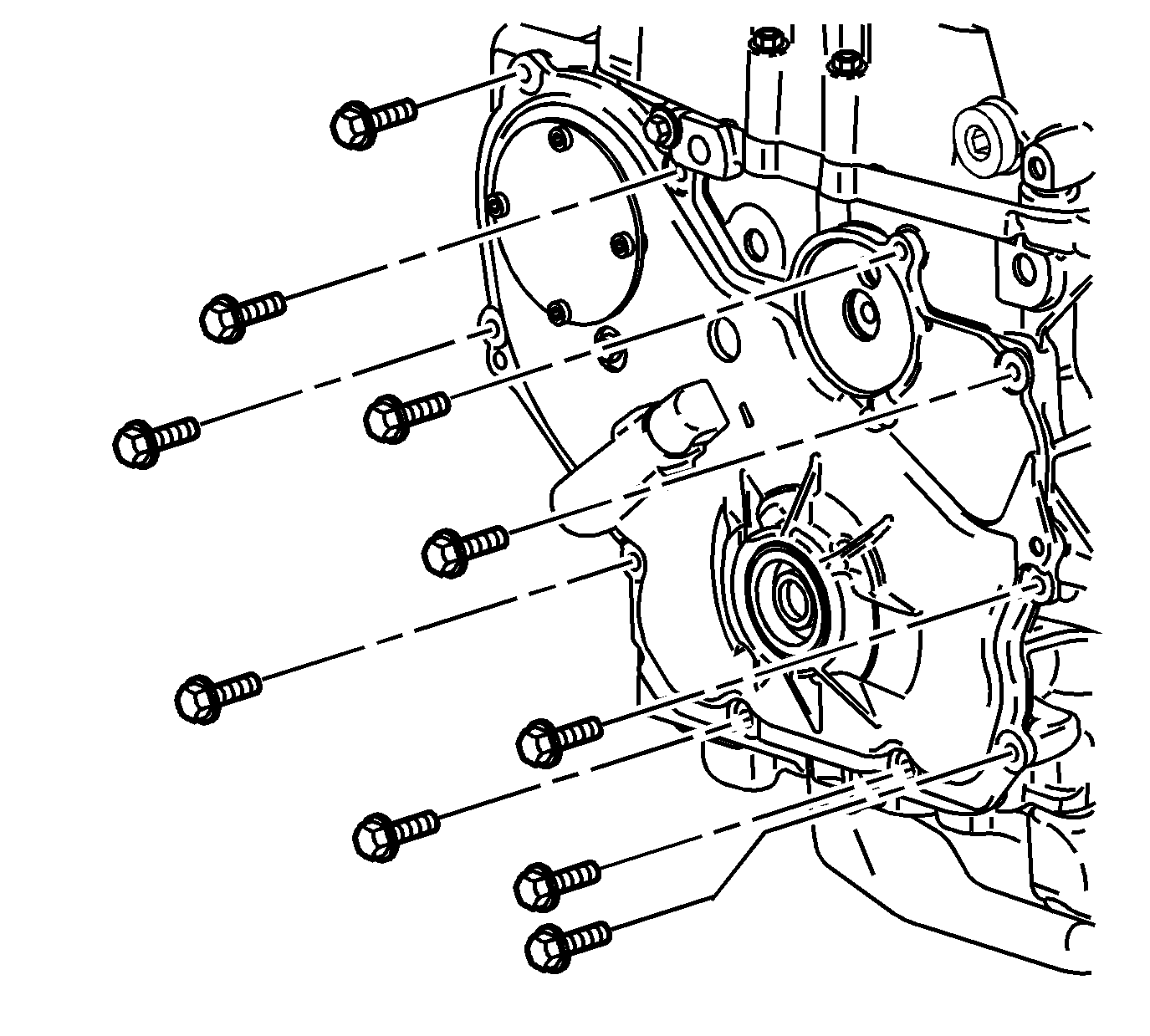

    3. Fig 2: View Of Engine Front Cover Bolts
    GM412538Courtesy of GENERAL MOTORS CORP.
  3. Install the engine front cover bolts.

    Tighten:  Tighten the engine front cover bolts to 25 N.m (18 lb ft).

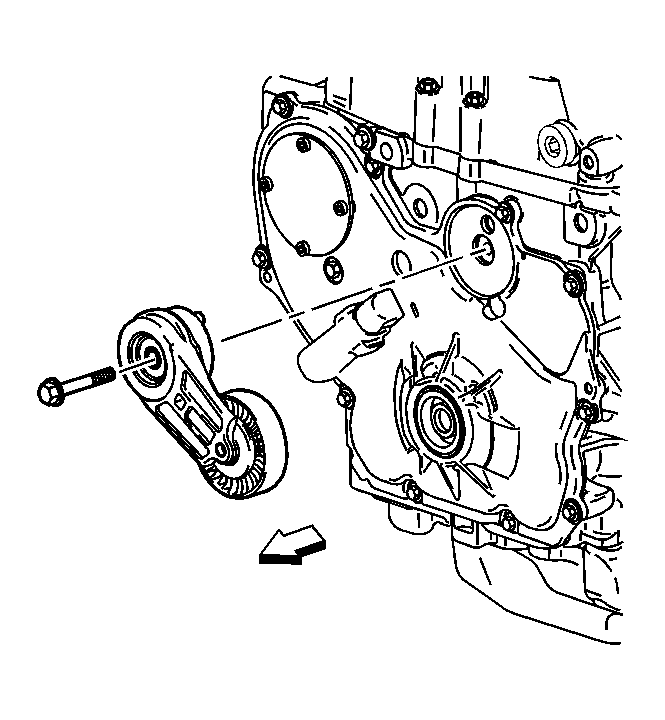

    4. Fig 3: View Of Drive Belt Tensioner
    GM412154Courtesy of GENERAL MOTORS CORP.
  4. Install the accessory drive belt tensioner.
  5. Install the accessory drive belt tensioner bolt.

    Tighten:  Tighten the bolt to 45 N.m (33 lb ft).
