Tools Required

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

J 45059 (SA9140E) Angle Meter. See Special Tools .

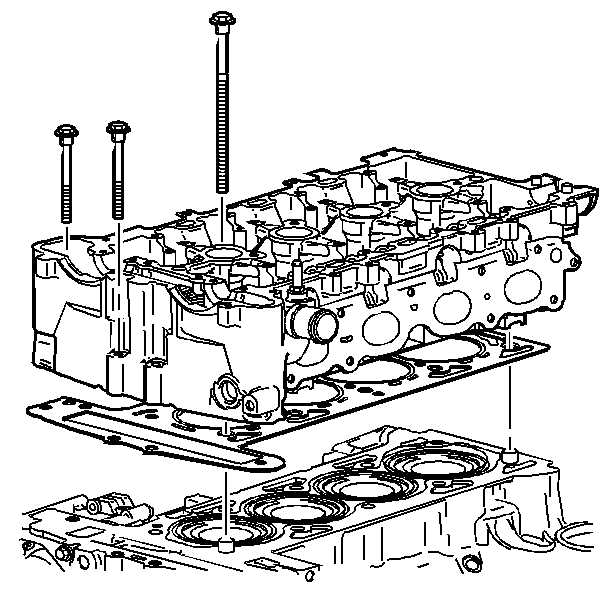

Fig 1: View Of Cylinder Head And Gasket

Courtesy of GENERAL MOTORS CORP.

IMPORTANT: Do not use any sealing material.

Install the cylinder head gasket to the block.
Install the cylinder head.

Fig 2: Identifying Cylinder Head Bolt Tightening Sequence

Courtesy of GENERAL MOTORS CORP.

IMPORTANT: Always use new cylinder head bolts.

NOTE: Refer to FASTENER NOTICE .

Install and tighten the cylinder head bolts in sequence.
Tighten:
- Tighten bolts 30 N.m (22 lb ft).
- Then turn all the bolts 155 degrees in sequence. Use the J 45059 (SA9140E). See Special Tools .

Fig 3: Locating Front Cylinder Head Bolts

Courtesy of GENERAL MOTORS CORP.

Install the front cylinder head bolts.
Tighten: Tighten the cylinder head bolts to 35 N.m (26 lb ft).

Fig 4: View Of EGR Cover, Gasket & Bolts

Courtesy of GENERAL MOTORS CORP.

Install the EGR cover (2), the bolts (1), and the EGR cover gasket (3).
Tighten: Tighten the EGR cover bolts to 25 N.m (18 lb ft).
