Tools Required

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

J 35268-A  Camshaft/Front Main Seal Installer

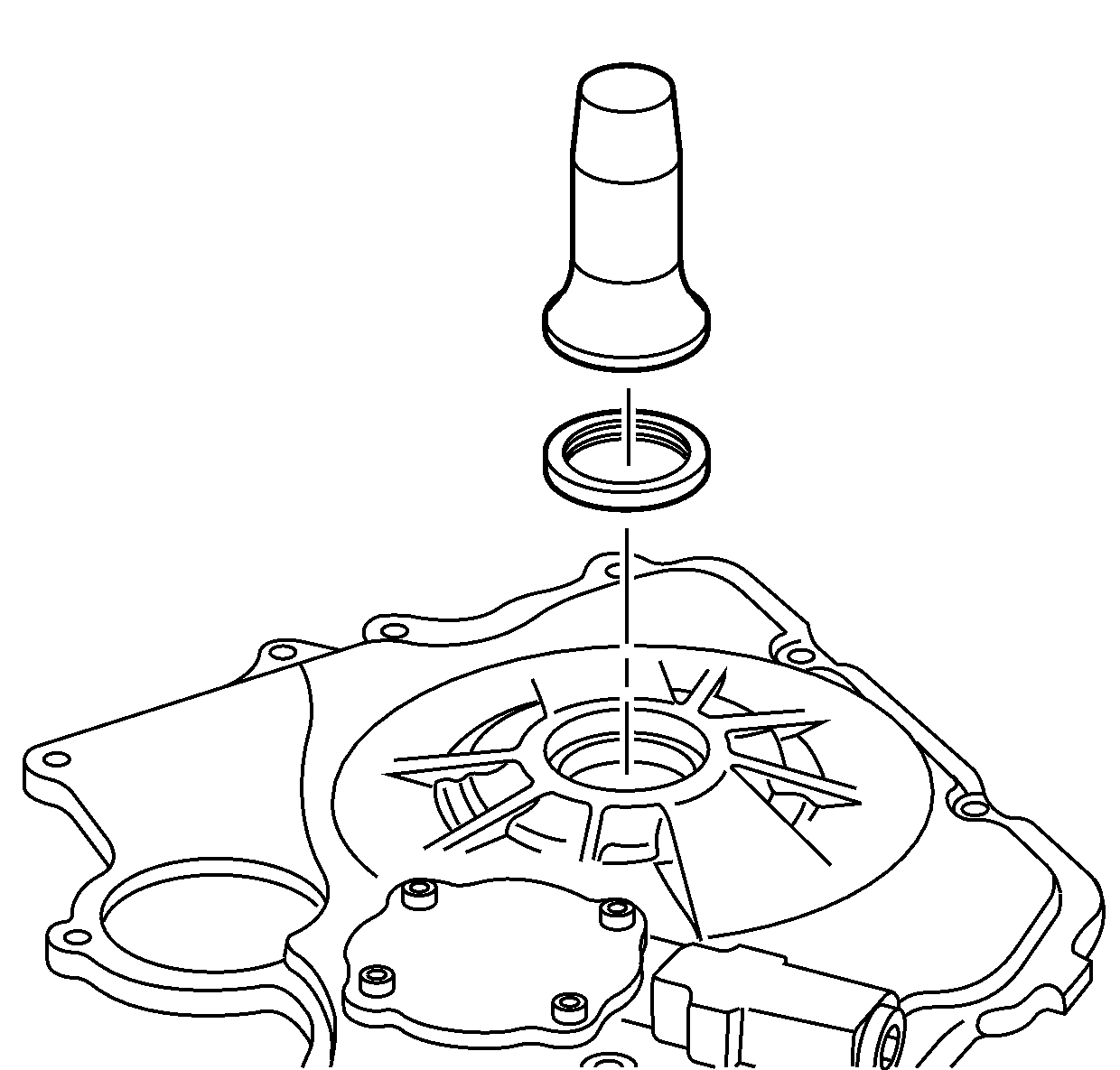

    Fig 1: Installing Crankshaft Front Oil Seal
    GM414081Courtesy of GENERAL MOTORS CORP.
  1. Install the seal into the front cover using the J 35268-A  .
  2. Ensure that the engine front cover is properly supported when installing the seal.
