Camshaft Cover Installation

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

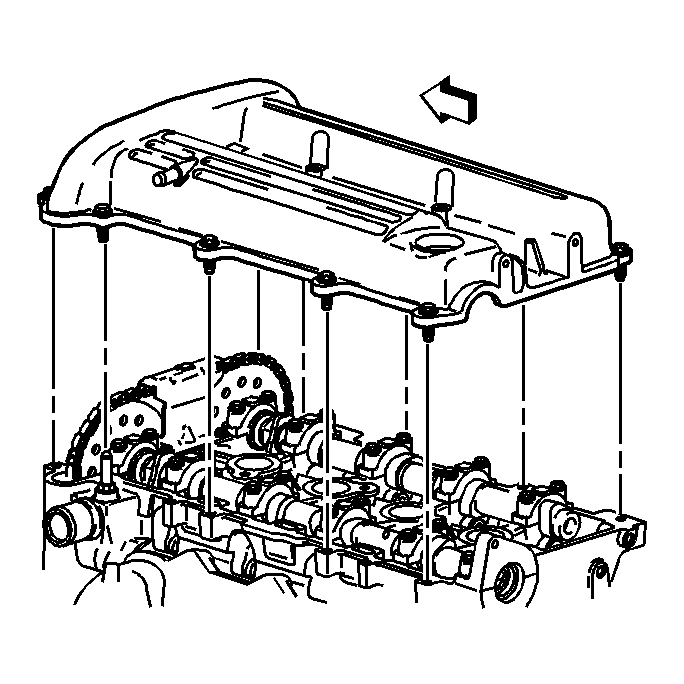

Fig 1: View Of Camshaft Cover

Courtesy of GENERAL MOTORS CORP.

Assemble the camshaft cover and gasket. Ensure that the gasket is located in the retaining groove in the camshaft cover.

NOTE: Refer to FASTENER NOTICE .

Install the cover on the cylinder head and hand start the bolts.
Tighten: Tighten the camshaft cover bolts to 10 N.m (89 lb in).

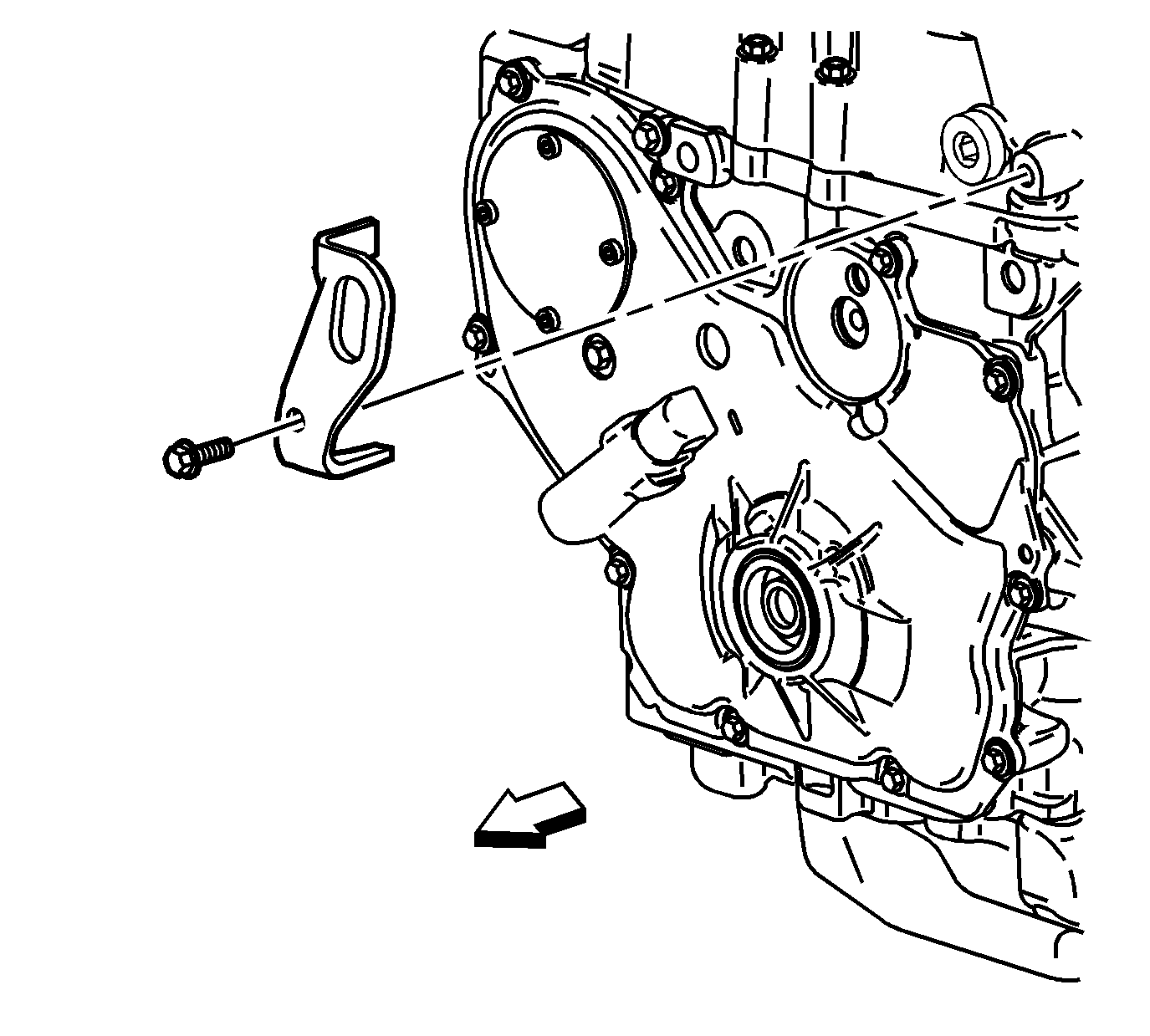

Fig 2: View Of Front Lift Bracket

Courtesy of GENERAL MOTORS CORP.

Install the front lift bracket.
Tighten: Tighten the front lift bracket bolt to 25 N.m (18 lb ft).

Fig 3: View Of Rear Lift Bracket

Courtesy of GENERAL MOTORS CORP.

Install the rear lift bracket.
Tighten: Tighten the rear lift bracket bolts to 25 N.m (18 lb ft).

Fig 4: View Of Camshaft Cover Ground Strap

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE .

Install the ground strap.
Tighten: Tighten the camshaft cover ground strap bolts to 10 N.m (89 lb in).

Fig 5: View Of Spark Plugs

Courtesy of GENERAL MOTORS CORP.

Install the spark plugs.
Tighten: Tighten the spark plugs to 20 N.m (15 lb ft).

Fig 6: View Of Ignition Coil And Mounting Bolt

Courtesy of GENERAL MOTORS CORP.

Install the ignition coil.
Install the ignition coil bolts.
Tighten: Tighten the ignition coil bolts to 10 N.m (89 lb in).

Fig 7: View Of Power Steering Blockout Plate

Courtesy of GENERAL MOTORS CORP.

Install the power steering blockout plate.
Tighten: Tighten the power steering blockout plate bolts to 25 N.m (18 lb ft).
