Installation Procedure

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

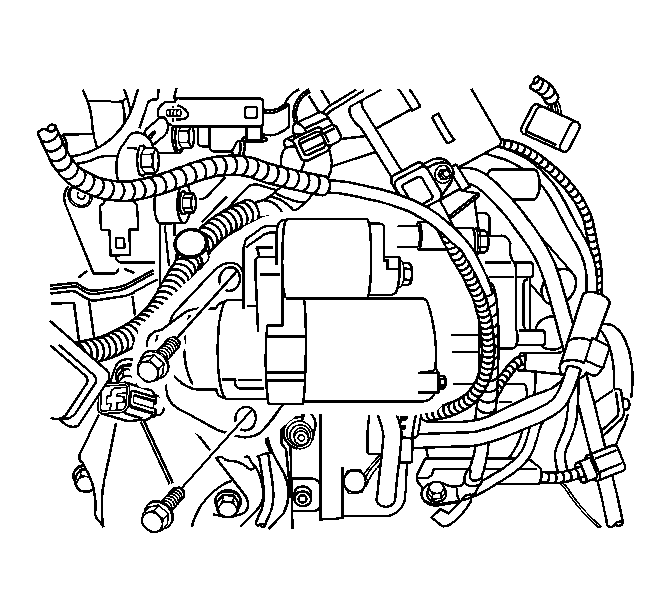

    Fig 1: View Of Starter
    GM1227130Courtesy of GENERAL MOTORS CORP.
  1. Install the starter to the transmission.
    2. NOTE: Refer to Fastener Notice .
  2. Install the starter mounting bolts.

    Tighten:  Tighten the starter-to-transmission bolts to 44 N.m (33 lb ft).

  3. Install the B+ cable and nut.

    Tighten:  Tighten the B+ cable-to-starter nut to 10 N.m (89 lb in).

  4. Install the S-terminal wire.
  5. Connect the negative battery cable to the battery. Refer to Battery Negative Cable Disconnection and Connection (2.2L (L61) and 3.5L (L66))  or Battery Negative Cable Disconnection and Connection (2.4L (LAT)) .

    Tighten:  Tighten the battery terminal bolt to 17 N.m (13 lb ft).

  6. Reprogram the radio stations.
