Removal Procedure

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

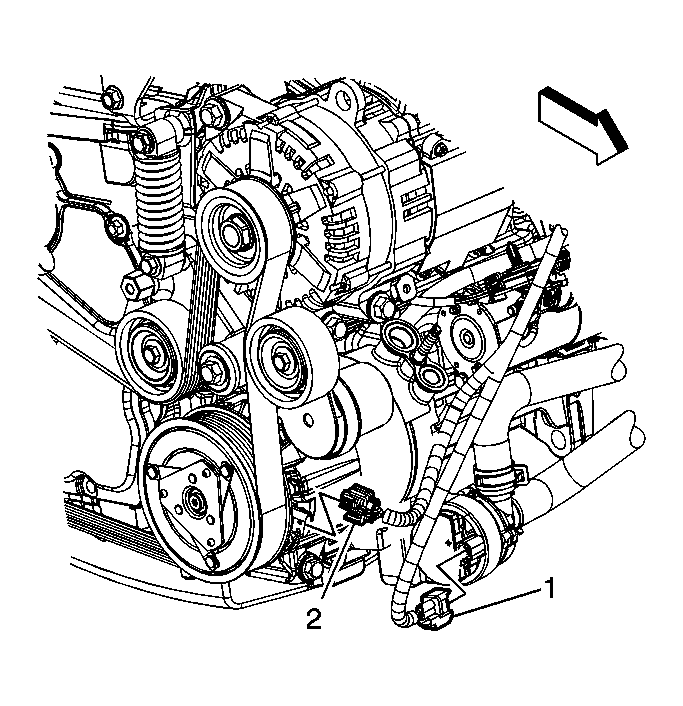

    Fig 1: Engine Wiring Harness Electrical Connector
    GM1811958Courtesy of GENERAL MOTORS CORP.
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Disconnect the engine wiring harness electrical connector (1) from the generator control module coolant pump.

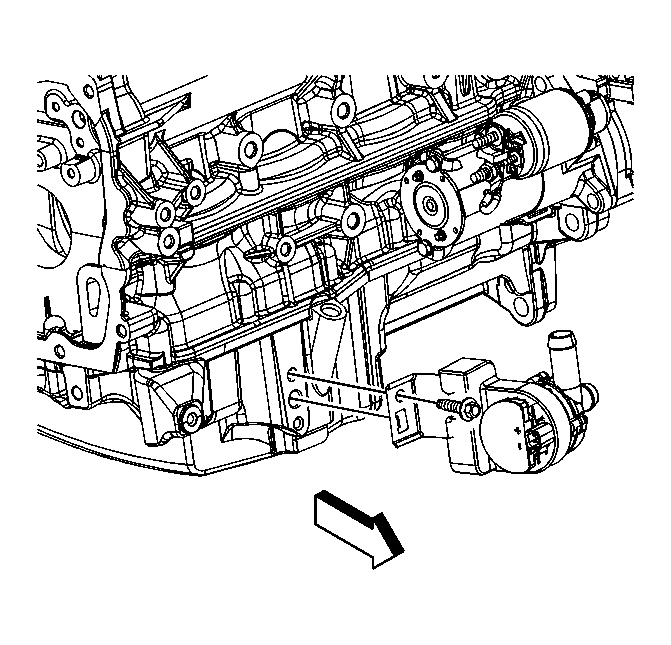

    3. Fig 2: Generator Control Module Coolant Pump
    GM1811960Courtesy of GENERAL MOTORS CORP.
  3. Remove the generator control module coolant pump bolt.
  4. Remove the generator control module coolant pump from the oil pan.
  5. Reposition and secure the generator control module coolant pump out of the way.
    6. Fig 3: View Of Starter And Electrical Connectors
    GM1813964Courtesy of GENERAL MOTORS CORP.
  6. Remove the engine wiring harness lead (2) from the starter motor.
  7. Remove the engine wiring harness to starter motor S terminal nut (3).
  8. Remove the positive battery cable lead (1) from the starter motor.
  9. Remove the positive battery cable to starter motor nut (4).
    10. Fig 4: Starter Motor Bolts And Starter
    GM1814106Courtesy of GENERAL MOTORS CORP.
  10. Remove the starter motor bolts and starter.
