Installation Procedure

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Do not tip the battery over a 45 degree angle or acid could spill causing serious personal injury.

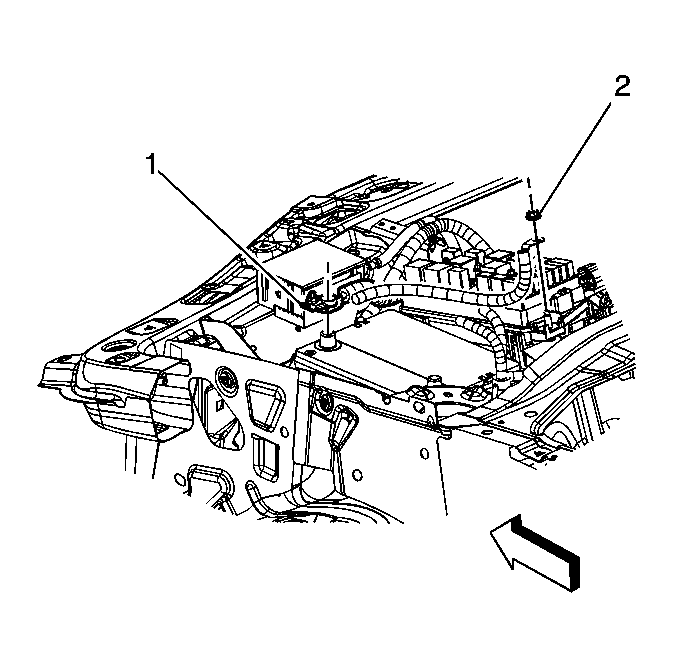

    Fig 1: Positive Battery Cable
    GM1813963Courtesy of GENERAL MOTORS CORP.
  1. Install the battery to the vehicle.
  2. Install the positive battery cable to the battery.
    3. NOTE: Refer to Fastener Notice .
  3. Tighten the positive battery cable terminal nut (1).

    Tighten:  Tighten the nut to 22 N.m (16 lb ft).

  4. Close the positive battery cable cover until the two side retainers are engaged.
    5. Fig 2: Battery Hold Down Bracket And Retainers
    GM1813962Courtesy of GENERAL MOTORS CORP.
  5. Install the battery hold down retainer (5).
  6. Install the battery hold down bracket nuts (1, 4).

    Tighten:  Tighten the nuts to 10 N.m (89 lb in).

  7. Install the wiring harness relay block bracket (2) and nut (3).

    Tighten:  Tighten the nut to 10 N.m (89 lb in).

    8. Fig 3: Identifying ECM Bracket And ECM
    GM1813961Courtesy of GENERAL MOTORS CORP.
  8. Unsecure and position the ECM (w/bracket) to the battery hold down retainer. Align the side tabs and slide the bracket rearward.
    9. Fig 4: Identifying Hybrid-Related Harness Retainers
    GM1820895Courtesy of GENERAL MOTORS CORP.
  9. Install the 36 volt positive battery cable clip (4) to the ECM bracket.
    10. Fig 5: View Of Engine Wiring Harness Auxiliary Bussed Electrical Center (BEC)
    GM1813960Courtesy of GENERAL MOTORS CORP.
  10. Position the engine wiring harness auxiliary BEC (1).
  11. Install the engine wiring harness auxiliary BEC (1) to the wiring harness relay block bracket.
  12. Install the engine wiring harness clip (2) to the positive battery cable bracket.
  13. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection (2.2L (L61) and 3.5L (L66))  or Battery Negative Cable Disconnection and Connection (2.4L (LAT)) .
