Installation Procedure

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Engine Wiring Harness Ground Lead Nut And Stud
    GM1813437Courtesy of GENERAL MOTORS CORP.
  1. Install the negative battery cable to the engine compartment as close to the original routing noted during removal.
  2. Raise the vehicle.
  3. Install the negative battery cable lead (2) to the transaxle stud.
    4. NOTE: Refer to Fastener Notice .
  4. Install the engine wiring harness ground lead nut (1) to the transaxle stud.

    Tighten:  Tighten the nut to 50 N.m (37 lb ft).

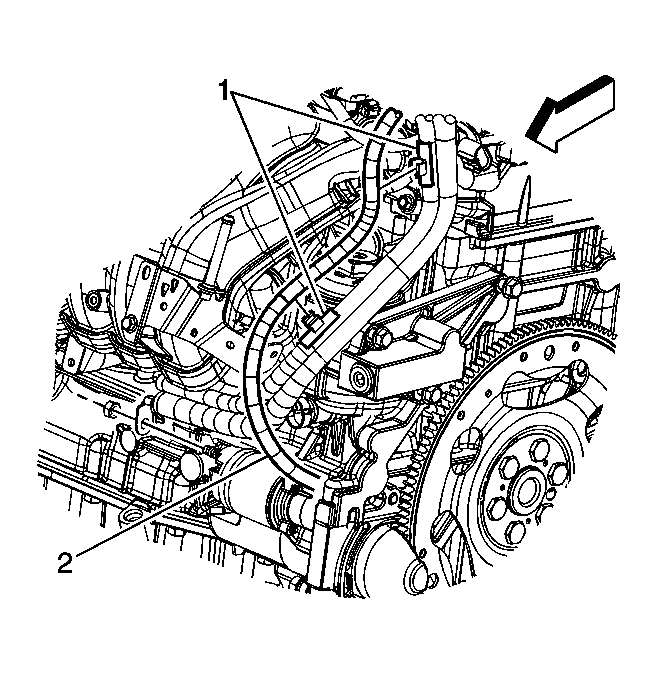

    5. Fig 2: Locating Cable Retainers
    GM1813434Courtesy of GENERAL MOTORS CORP.
  5. Lower the vehicle.
  6. Install the negative battery cable (2) to the positive battery cable retainers (1).
    7. Fig 3: View Of Negative Battery Cable Connection To Body
    GM1813432Courtesy of GENERAL MOTORS CORP.
  7. Install the negative battery cable (1) to the stud.
  8. Install the negative battery cable nut (2) to the left front wheelhouse panel (3) stud.

    Tighten:  Tighten the nut to 10 N.m (89 lb in).

  9. Install the battery tray. Refer to Battery Tray Replacement (2.2L (L61))  or Battery Tray Replacement (2.4L (LAT))  or Battery Tray Replacement (3.5L (L66)) .
