Removal Procedure

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection (2.2L (L61) and 3.5L (L66))  or Battery Negative Cable Disconnection and Connection (2.4L (LAT)) .
    2. Fig 1: View Of Battery Ground (Negative) Cable And Bolt
    GM368800Courtesy of GENERAL MOTORS CORP.
  2. Remove the battery tray. Refer to Battery Tray Replacement (2.2L (L61))  or Battery Tray Replacement (2.4L (LAT))  or Battery Tray Replacement (3.5L (L66)) .
  3. Remove the negative battery cable nut from the right frame rail.

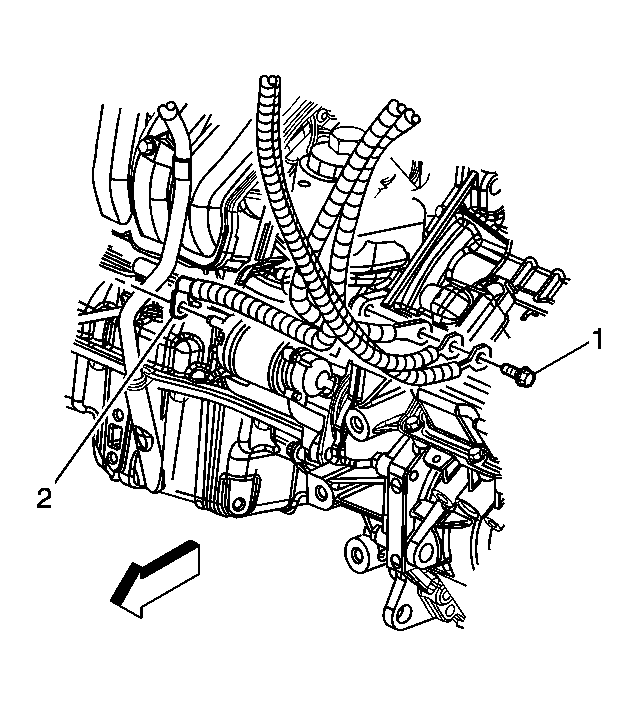

    4. Fig 2: View Of Negative Battery Cable To The Transmission Bracket
    GM1336944Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the negative battery cable from the transmission bracket (1).
  5. Disconnect the negative battery cable from the retainers.
  6. Remove the negative battery cable.
