Removal Procedure

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: View Of Rear Door Power Window Regulator
    GM943377Courtesy of GENERAL MOTORS CORP.
  1. Remove the rear door window. Refer to Rear Side Door Window Replacement .
  2. Disconnect the window regulator electrical connector through the inside handle hole in the door.
    3. IMPORTANT: Do not damage sound insulator when removing the regulator.
  3. Remove the net-hole regulator bolts from the regulator (1, 4).
  4. Partially remove the keyhole slot bolts (2, 3, 5).

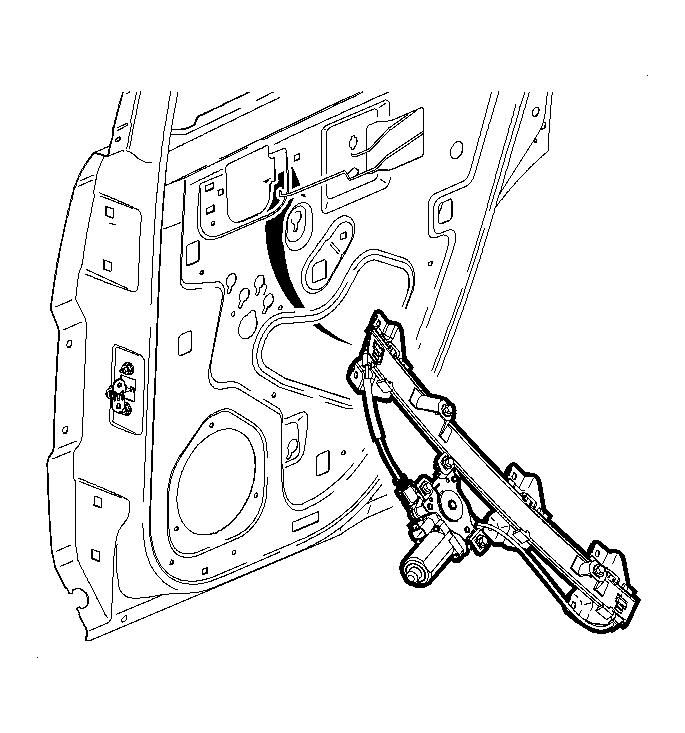

    5. Fig 2: Removing/Installing Rear Door Regulator
    GM943370Courtesy of GENERAL MOTORS CORP.
  5. Remove the rear door regulator out through the lower access hole in the door structure.
