Installation Procedure

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

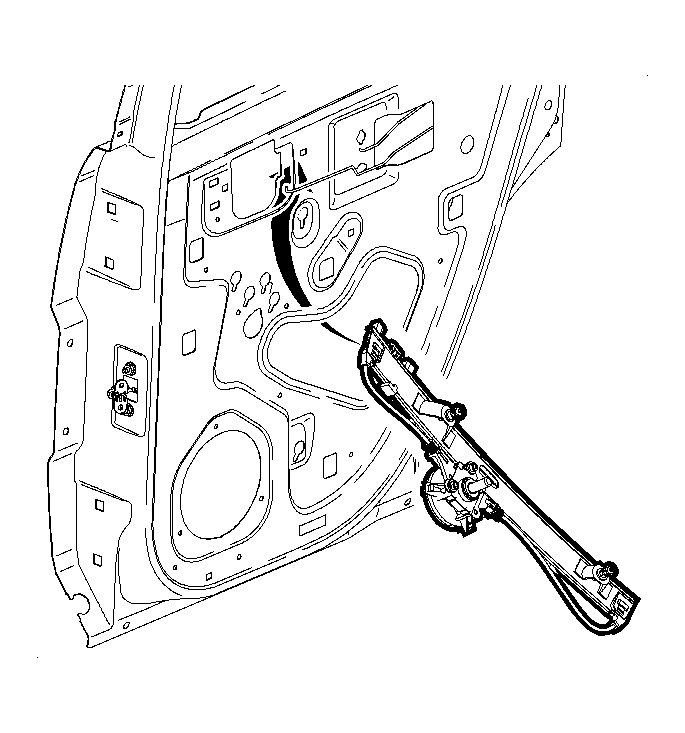

    Fig 1: Removing/Installing Rear Door Regulator
    GM943387Courtesy of GENERAL MOTORS CORP.
  1. Install the rear door regulator through the lower access hole in the door structure.
    2. Fig 2: View Of Rear Door Manual Window Regulator
    GM943397Courtesy of GENERAL MOTORS CORP.
  2. Position the window regulator on the keyhole slot bolts (2, 3, 5) in the door structure.
    3. NOTE: Refer to Fastener Notice .
  3. Install the net-hole regulator bolts.

    Tighten:  Tighten all of the bolts in the sequence shown to 10 N.m (89 lb in).

  4. Install the rear door window. Refer to Rear Side Door Window Replacement .
